Flanges

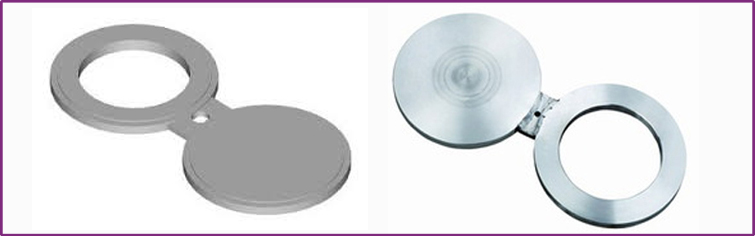

Our product range also comprises of Carbon Steel Flanges, Spectacle Flange and Duplex Flanges.These are durable in quality and are precision made. These spectacle flanges are made from high quality carbon steel and stainless steel and are offered in different dimensions & sizes that ensure that no compromise is made the aspect of quality.

Spectacle Flanges Range
½" (15 NB) to 48" (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. Available with NACE MR 01-75

Stainless Steel Spectacle Flanges
Grade : 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 L, 317, 317L, 321, 347, 347 H, 409, 410, 410S, 420, 430L

Duplex Steel Spectacle Flanges
Grade : 2205 (UNS No. S31803), 2507 (UNS No. S32750)

Nickel Alloy Spectacle Flanges
Grade : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)

Copper Alloy Spectacle Flanges
Grade : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)

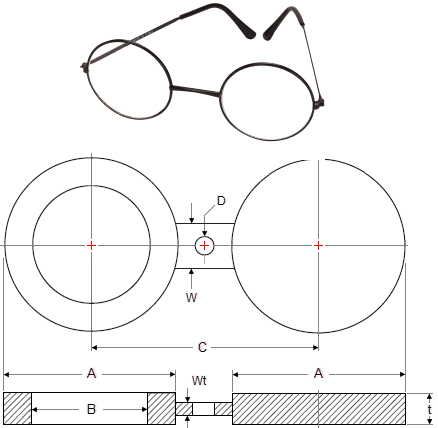

Dimensions

Spectacle Flanges Standard

• ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
• DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
• B.S : BS4504 , BS4504, BS1560, BS10
• OTHER : PLATE, PLATE BLANK

Spectacle Blinds Flanges ANSI B16.5 Class 150 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 150. The ANSI flanges in the class 150 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 150 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

CLASS 150 SPECTACLE BLINDS

NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W
1/2	45	16	60	3	38
3/4	54	21	70	3	38
1	64	27	80	3	38
1¼	73	42	90	6.4	38
1½	83	48	100	6.4	38
2	102	61	120	6.4	51
2½	107	73	140	6.4	51
3	133	89	150	6.4	64
3½	159	102	175	9.7	64
4	172	114	190	9.7	64
5	194	141	215	9.7	76
6	219	168	240	12.7	76
8	276	219	300	12.7	76
10	337	273	360	15.7	102
12	406	324	430	19.1	102
14	448	356	475	19.1	108
16	511	406	460	22.4	108
18	546	457	580	25.4	114
20	603	508	635	28.4	121
24	714	610	750	31.8	140
NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W



Spectacle Blinds Flanges ANSI B16.5 Class 300 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 300. The ANSI flanges in the class 300 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 300 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

ClASS 300 SPECTACLE BLINDS

NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W
1/2	51	16	65	6.4	38
3/4	64	21	80	6.4	38
1	70	27	90	6.4	38
1¼	79	42	100	6.4	38
1½	92	48	115	6.4	38
2	108	61	125	9.7	51
2½	127	73	150	9.7	51
3	146	89	170	9.7	64
3½	162	102	185	12.7	64
4	178	114	200	12.7	64
5	213	141	235	15.7	76
6	248	168	270	15.7	76
8	305	219	330	22.4	76
10	359	273	385	25.4	102
12	419	324	450	28.4	102
14	483	356	515	31.8	108
16	536	406	570	38.1	108
18	594	457	630	41.1	114
20	651	508	685	44.5	121
24	772	610	810	50.8	140
NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W

Spectacle Blinds Flanges ANSI B16.5 Class 400 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 400. The ANSI flanges in the class 400 specification cover slip-ons, weld necks, lap joints, blinds, and threaded flanges. ANSI flanges for class 400 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

Spectacle Blinds Flanges ANSI B16.5 Class 600 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 600. The ANSI flanges in the class 600 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 600 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

CLASS 600 SPECTACLE BLINDS

NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W
1/2	51	16	65	6.4	38
3/4	64	21	80	6.4	38
1	70	27	90	6.4	57
1¼	79	37	100	9.7	57
1½	92	43	115	9.7	67
2	108	55	125	9.7	57
2½	127	67	150	12.7	67
3	146	83	170	12.7	67
3½	159	96	185	15.7	76
4	191	108	215	15.7	76
5	238	135	265	19.1	86
6	264	162	290	22.4	86
8	318	212	350	28.4	95
10	397	265	430	35.1	105
12	454	315	490	41.1	105
14	489	346	525	44.5	114
16	562	397	605	50.8	124
18	610	448	655	53.8	133
20	679	497	725	63.5	133
24	787	597	840	73.2	152
NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W



Spectacle Blinds Flanges ANSI B16.5 Class 900 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 900. The ANSI flanges in the class 900 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 900 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W
1/2	60	16	80	6.4	38
3/4	67	21	90	6.4	41
1	76	27	100	6.4	57
1¼	86	37	110	9.7	57
1½	95	43	125	9.7	67
2	140	55	165	12.7	57
2½	162	67	190	12.7	67
3	165	83	190	15.7	67
4	203	108	235	19.1	76
5	244	135	280	22.4	86
6	286	162	320	25.4	86
8	356	212	395	35.1	95
10	432	265	470	41.1	105
12	495	315	535	47.8	105
14	518	346	560	53.8	114
16	572	397	615	60.5	124
18	635	448	685	66.5	133
20	696	497	750	73.2	133
24	835	597	900	88.9	152
NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W



Spectacle Blinds Flanges ANSI B16.5 Class 1500 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 1500. The ANSI flanges in the class 1500 specification cover slip-ons, weld necks, lap joints, blinds, threaded and socket weld flanges. ANSI flanges for class 1500 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W
1/2	61	16	80	6.4	38
3/4	67	21	90	9.7	41
1	76	27	100	9.7	64
1¼	86	35	110	9.7	64
1½	95	41	125	12.7	70
2	140	53	165	12.7	70
2½	162	63	190	15.7	76
3	172	78	205	19.1	76
4	206	102	240	22.4	89
5	251	128	290	28.4	89
6	279	154	320	35.1	89
8	349	203	395	41.1	102
10	432	255	480	50.8	114
12	518	303	570	60.5	114
14	575	333	635	66.5	127
16	638	381	705	76.2	133
18	702	429	775	85.9	146
20	752	478	830	95.3	152
24	899	575	990	111.3	178
NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W



Spectacle Blinds Flanges ANSI B16.5 Class 2500 Flanges

ANSI flanges are available at Steel Tubes India Flange in class 2500. The ANSI flanges in the class 2500 specification cover slip-ons, weld necks, lap joints, blinds, and threaded flanges. ANSI flanges for class 2500 are provided by Steel Tubes India Flange as forgings unless otherwise specified.

NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W
1/2	67	16	90	9.7	38
3/4	73	21	95	9.7	41
1	83	27	110	9.7	64
1¼	102	35	130	12.7	64
1½	114	41	145	15.7	70
2	143	53	170	15.7	70
2½	165	63	195	19.1	76
3	194	78	230	22.4	76
4	232	102	275	28.4	89
5	276	128	325	35.1	89
6	314	154	370	41.1	89
8	384	198	440	53.8	102
10	473	248	540	66.5	114
12	546	289	620	79.2	114
NPS	Outside Ø A	Inside Ø B	Centerline C	Thickness t	Web Width W

General notes:

• Dimensions are in millimeters unless otherwise indicated.
• D = Hole size (where required) should be the same as the flange bolt hole. In practice, these dimensions have been rounded round off upwards.
• Wt = Thickness of the web (or tie bar) should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
• Spectacle Blinds Flanges should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
• Spectacle Blinds Flanges according to ASME B16.48 may be used for installation between ASME B16.5 flanges
• Depending on a customer specification, some dimensions can be different from what on this page is defined.
