Flanges

FLANGES

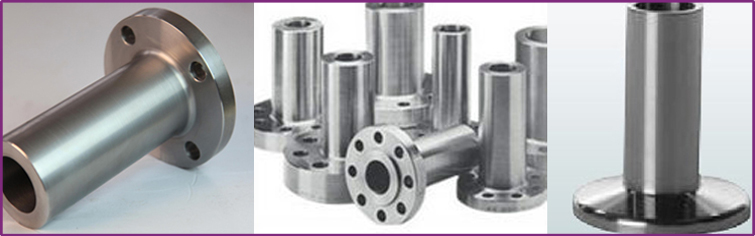

LONG WELD NECK FLANGES

Our extensive range of Long Weld Neck Flanges is used in general piping, refineries, and other related industries. These Long Weld Neck Flanges are procured from authentic vendors, who are selected on the basis of their market credibility. Our Long Weld Neck Flanges are appreciated for salient attributes such as corrosion resistance, high tolerance, and longer functional life.

Flanges are available in the following material grades:

  • Range
    ½” (15 NB) to 48” (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. Available with NACE MR 01-75

    Stainless Steel
    Grade : 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 L, 317, 317L, 321, 347, 347 H, 409, 410, 410S, 420, 430L

    Duplex Steel
    Grade : 2205 (UNS No. S31803), 2507 (UNS No. S32750)

    Nickel Alloy
    Grade : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)

    Copper Alloy
    Grade : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)

    Standard
    • ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
    • DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
    • B.S : BS4504 , BS4504, BS1560, BS10
    • OTHER : PLATE, PLATE BLANK

    Value Added Services
    • HOT DIPPED GALVANIZING
    • HEAT TREATMENT
    • CNC MACHINING
    • THREADING
