FLANGES

HIGH HUB BLIND FLANGES

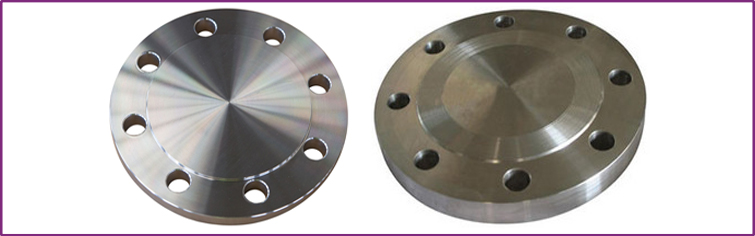

The high hub blind flange is used to close ends of piping systems. It is a kind of round plate with no center hold but with all the proper bolt holes. This high hub blind flange is available in various sizes and materials and is used to provide positive closer on the ends of pipes, valves or equipment nozzles. This flange helps in easy access to a line once it has been sealed. The high hub blind flange is sometimes custom made or machined to accept a nominal sized pipe to which reduction is being made. This reduction can be a threaded reduction or welded reduction.

Dimensions

Class 150 HH High Hub Blind Flanges

Item IDClass 150 HH High Hub Blind Flanges Description
1FF .51RHHBLD1/2 150 RF HIGH HUB BLIND ASME B16.5 001 lbs
1FF .751RHHBL3/4 150 RF HIGH HUB BLIND ASME B16.5 002 lbs
1FF 11RHHBL1 150 RF HIGH HUB BLIND ASME B16.5 002 lbs
1FF 1.51RHHBL1 1/2 150 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF 21RHHBL2 150 RF HIGH HUB BLIND ASME B16.5 005 lbs
1FF 31RHHBL3 150 RF HIGH HUB BLIND ASME B16.5 009 lbs
1FF 41RHHBL4 150 RF HIGH HUB BLIND ASME B16.5 017 lbs



Class 300 HH High Hub Blind Flanges

Item IDClass 300 HH High Hub Blind Flanges Description
1FF .53RHHBL1/2 300 RF HIGH HUB BLIND ASME B16.5 002 lbs
1FF .753RHHBL3/4 300 RF HIGH HUB BLIND ASME B16.5 003 lbs
1FF 13RHHBL1 300 RF HIGH HUB BLIND ASME B16.5 003 lbs
1FF 1.53RHHBL1 1/2 300 RF HIGH HUB BLIND ASME B16.5 006 lbs
1FF 23RHHBL2 300 RF HIGH HUB BLIND ASME B16.5 008 lbs



Class 600 HH High Hub Blind Flanges

Item IDClass 600 HH High Hub Blind Flanges Description
1FF .756RHHBL3/4 600 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF .56RHHBL1/2 600 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF 16RHHBL1 600 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF 1.56RHHBL1 1/2 600 RF HIGH HUB BLIND ASME B16.5 008 lbs
1FF 26RHHBL2 600 RF HIGH HUB BLIND ASME B16.5 010 lbs



Copper Alloy High Hub Blind Flanges
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) - Cupro Nickel High Hub Blind Flanges
C 71500 (CU -NI- 70/30) - Copper Nickel High Hub Blind Flanges
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200

Duplex Steel High Hub Blind Flanges
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Alloy Steel High Hub Blind Flanges - AS High Hub Blind Flanges
ASTM SA 182 F1/F5/F9/F11/F22/F91

Carbon Steel High Hub Blind Flanges - CS High Hub Blind Flanges
ASTMA 105 Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel High Hub Blind Flanges - LTCS High Hub Blind Flanges
A350 LF2/A350 LF3

Value Added Services
• Hot Dip Galvanizing • Electro polish

Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B

Duplex Stainless Steel : Duplex Stainless Steel High Hub Blind Flanges – Duplex SS High Hub Blind Flanges
ASTM A 182 – High Hub Blind Flanges
F 51 UNS S31803 High Hub Blind Flanges
S32750 High Hub Blind Flanges
S31500 High Hub Blind Flanges
ASTM / ASME A/SA 182 UNS High Hub Blind Flanges
F 44 High Hub Blind Flanges
F 45 High Hub Blind Flanges
F51 High Hub Blind Flanges
F 53 High Hub Blind Flanges
F 55 High Hub Blind Flanges
F 60 High Hub Blind Flanges
F 61 High Hub Blind Flanges

Carbon Steel High Hub Blind Flanges – CS High Hub Blind Flanges

ASTM A105 High Hub Blind Flanges
ASTM A 694-F42 High Hub Blind Flanges
F46 High Hub Blind Flanges
F52 High Hub Blind Flanges
F60 High Hub Blind Flanges
F65 High Hub Blind Flanges
F70 High Hub Blind Flanges

Copper Nickel High Hub Blind Flanges – Cu-Ni High Hub Blind Flanges.
