We are one of the reputed names that is engaged in manufacturing and exporting an exhaustive range of pipe fittings that is used for diverse industry verticals. Available in several types like threaded, high pressure and socket weld, these pipe fittings are fabricated to precision by our expert technocrats. We also undertake customization of these pipe fittings to meet the specific requirements of our clients.

Leveraging on our technology based manufacturing facility, we are manufacturing a quality proven range of socket weld fittings. Known for their superior functioning and ability to withstand high pressure, these fittings are widely used in chemical and pharmaceutical industries. These fittings are subject top customization as per the specifications laid down by our clients.

SOCKET WELD FITTINGS GENERAL
A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a
valve, fitting or flange.
In contrast to buttweld fittings, socket weld fittings are mainly used for small pipe diameters (Small
Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

Size : 1/2"NB TO 4"NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS

Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.

MATERIALS :
Stainless Steel 45 Deg. Forged Elbow – SS 45 Deg. Forged Elbow
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Stainless Steel 45 Deg. Forged Elbow - Duplex SS 45 Deg. Forged Elbow
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel 45 Deg. Forged Elbow – CS 45 Deg. Forged Elbow
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel 45 Deg. Forged Elbow  – LTCS 45 Deg. Forged Elbow
A350 LF3/A350 LF2

Alloy Steel 45 Deg. Forged Elbow – AS 45 Deg. Forged Elbow
ASTM / ASME A/SA 182  F1/F5/F9/F11/F22/F91

Nickel Alloy 45 Deg. Forged Elbow  :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 Forged Elbow )
UNS 2200 (NICKEL 200 Forged Elbow ),
UNS 2201 (NICKEL 201 Forged Elbow ),
UNS 4400 (MONEL 400 Forged Elbow ),
UNS 8020 (ALLOY 20 Forged Elbow )
UNS 8825 INCONEL 825 Forged Elbow ),
UNS 6600 (INCONEL 600 Forged Elbow ),
UNS 6601 (INCONEL 601 Forged Elbow),
UNS 6625 (INCONEL 625 Forged Elbow),

Copper Alloy 45 Deg. Forged Elbow
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel Forged Elbow
C 71500 (CU -NI- 70/30) – Copper Nickel Forged Elbow
UNS NO. C 92200, UNS NO. C 83600, UNS NO.  UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200

VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Dimensions

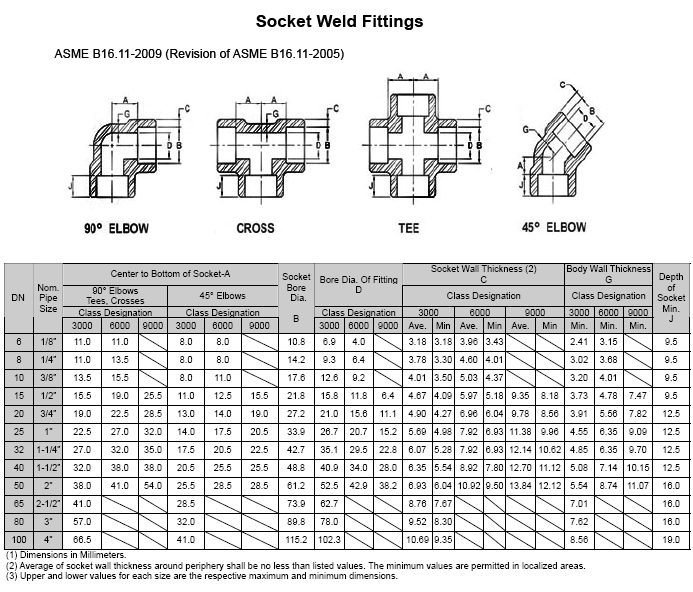

Dimensions Socket weld Elbows 90°/45°-NPS 1/2 - 4 according to ASME B16.11
