SOCKET WELD FITTINGS

FULL COUPLING

We are one of the reputed names that is engaged in manufacturing and exporting an exhaustive range of pipe fittings that is used for diverse industry verticals. Available in several types like threaded, high pressure and socket weld, these pipe fittings are fabricated to precision by our expert technocrats. We also undertake customization of these pipe fittings to meet the specific requirements of our clients.

Leveraging on our technology based manufacturing facility, we are manufacturing a quality proven range of socket weld fittings. Known for their superior functioning and ability to withstand high pressure, these fittings are widely used in chemical and pharmaceutical industries. These fittings are subject top customization as per the specifications laid down by our clients.

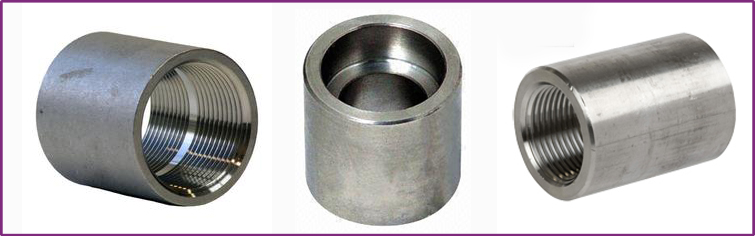

Nickel Alloy Socket Weld Full Coupling

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel Socket Weld Full Coupling

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Stainless Steel Socket Weld Full Coupling

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel Socket Weld Full Coupling

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Socket Weld Full Coupling

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Socket Weld Full Coupling

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
Socket Weld Full Coupling Size : 1/2” NB TO 24” NB.



Dimensions

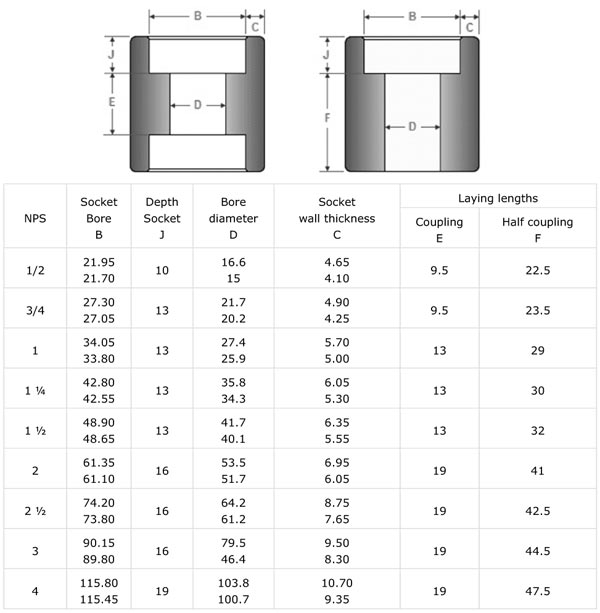

Dimensions Socket weld couplings and half-couplings 3000 lbs-NPS 1/2 - 4 according to ASME B16.11

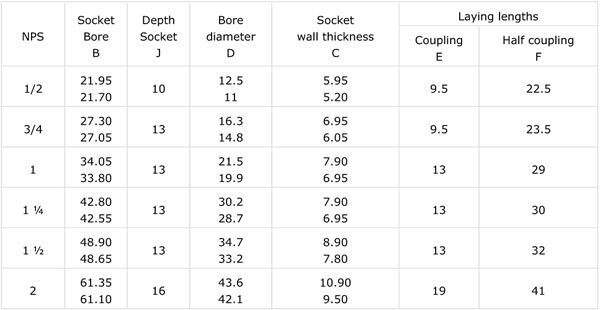

Dimensions Socket weld couplings and half-couplings 6000 lbs-NPS 1/2 - 2 according to ASME B16.11

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) - Maximum and Minimum dimensions.
Bore Diameter (D) - Maximum and Minimum dimensions.
Socket wall thickness - (C) - Average of Socket wall thickness.
Dimensional tolerances laying lengths - (E & F)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2½ to NPS 4 = +/- 2.5 mm

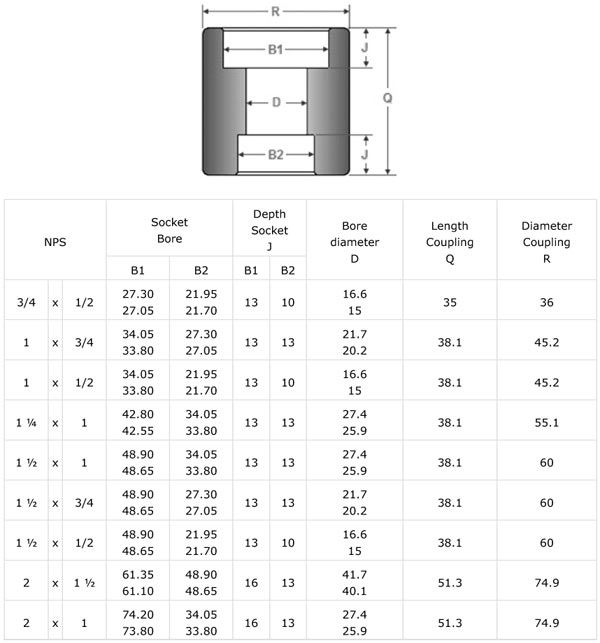

Dimensions Socket weld reducing couplings - 3000 LBS - NPS 1/2 - 2 according to ASME B16.11

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B1 / B2) - Maximum and Minimum dimensions.
Bore Diameter (D) - Maximum and Minimum dimensions.

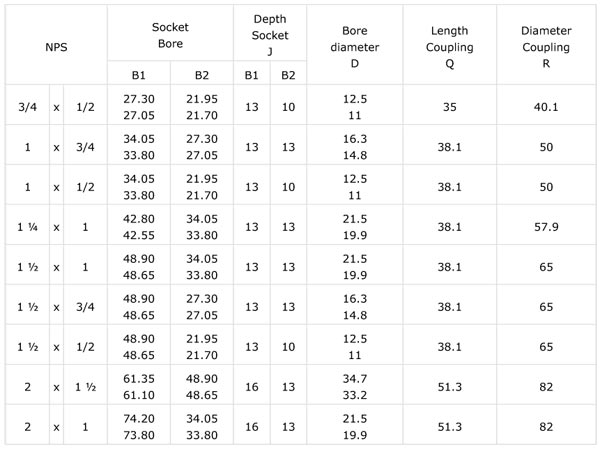

Dimensions Socket weld reducing couplings - 6000 LBS - NPS 1/2 - 2 according to ASME B16.11
