WELDOLET
Variations:
- 3000# & 6000#
- But-weld : SCH10S - SCH40S - SCH80S - SCH160 - SCHXXS
Standards:
- ASTM B564 - ASME SB564 - 'Standard Specification for Nickel Alloy Forgings'
- ASME B16.11 - 'Forged Fittings Socket - Welding and Threaded'
- MSS SP-97 - 'Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends'
Size : 1/8" NB to 4" NB. (Socket weld & Threaded)
Class : 150, 3000, 6000, 9000
Dimensions:
Outlet : 1/2" à 8"
Run pipe : 1/2" à 60"
Nickel Alloy
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276) ASTM / ASME SB 160UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472UNS 8020 ( ALLOY 20 / 20 CB 3)
Copper Alloy
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO.70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel
ASTM / ASME SA 182 F304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.
Alloy Steel
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Nickel Alloy Weldolet Standard :
- ASTM / ASME SB 564 / 160 / 472
- Nickel 200 Weldolet – UNS N02200
- Nickel 201 Weldolet – UNS N02201
- Monel 400 Weldolet – UNS N04400
- Monel K500 Weldolet – UNS N05500
- Inconel K600 Weldolet – UNS N06600
- Inconel 601 Weldolet – UNS N06601
- Inconel 625 Weldolet – UNS N06625
- Inconel 800 Weldolet – UNS N08800
- Inconel 800H Weldolet – UNS N08810
- Inconel 825 Weldolet – UNS N08825
- Hastelloy C276 Weldolet – UNS N10276
- Alloy 20 Weldolet – UNS N08020

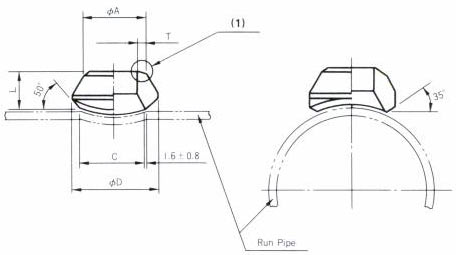

Dimensions
Outlet Nominal Pipe Size |
Face to Crotch (L) | |||||
---|---|---|---|---|---|---|
Standard (SCH40S) | XS (SCH80S) | SCH160 | ||||
Réduit | Egal | Réduit | Egal | Réduit | Egal | |
1/8" | 16 | - | 16 | - | - | - |
1/4" | 16 | - | 16 | - | - | - |
3/8" | 16 | - | 19 | - | - | - |
1/2" | 19 | 19 | 19 | 19 | 28 | 28 |
3/4" | 22 | 22 | 22 | 22 | 32 | 32 |
1" | 27 | 27 | 27 | 27 | 38 | 38 |
1 1/4" | 32 | 32 | 32 | 30 | 44 | 44 |
1 1/2" | 33 | 33 | 33 | 32 | 51 | 51 |
2" | 38 | 38 | 38 | 38 | 55 | 55 |
2 1/2" | 41 | 41 | 41 | 41 | 62 | 62 |
3" | 44 | 44 | 44 | 44 | 73 | 73 |
3 1/2" | 48 | 51 | 48 | 51 | - | - |
4" | 51 | 51 | 51 | 51 | 84 | 84 |
5" | 57 | 57 | 57 | 57 | 94 | 94 |
6" | 60 | 60 | 78 | 78 | 105 | 105 |
8" | 70 | 70 | 99 | 99 | - | - |
10" | 78 | 78 | 94 | 89 | - | - |
12" | 86 | 86 | 103 | 100 | - | - |
14" | 89 | 89 | 100 | 105 | - | - |
16" | 94 | 94 | 106 | 113 | - | - |
18" | 97 | 103 | 111 | 119 | - | - |
20" | 102 | 117 | 119 | 127 | - | - |
24" | 116 | 137 | 140 | 140 | - | - |
The dimensions are in millimeters
Source : MSS SP-97 - 2006

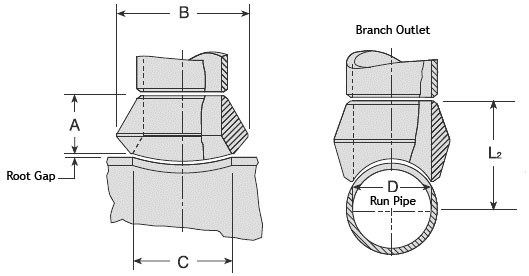

Dimensions - Weldolet Size on Size XS
Outlet Size Inches |
A | B | C | D | Apprx. Weight Pounds |
1/2 | 3/4 | 1 3/8 | 15/16 | 5/8 | 0.15 |
3/4 | 7/8 | 1 5/8 | 1 3/16 | 13/16 | 0.25 |
1 | 1 1/16 | 2 | 1 7/16 | 1 1/32 | 0.40 |
1 1/4 | 1 1/4 | 2 7/16 | 1 3/4 | 1 3/8 | 0.70 |
1 1/2 | 1 5/16 | 2 7/8 | 2 | 1 5/8 | 0.90 |
2 | 1 1/2 | 3 1/2 | 2 9/16 | 2 1/16 | 1.60 |
2 1/2 | 1 5/8 | 4 1/16 | 3 | 2 7/16 | 2.50 |
3 | 1 3/4 | 4 13/16 | 3 11/16 | 3 1/16 | 4.10 |
3 1/2 | 2 | 5 3/8 | 3 7/8 | 3 9/16 | 5.10 |
4 | 2 | 6 | 4 3/4 | 4 | 7.50 |
5 | 2 1/4 | 7 1/8 | 5 9/16 | 5 1/16 | 9.50 |
6 | 3 1/16 | 8 7/8 | 6 11/16 | 6 1/16 | 15.00 |
8 | 3 7/8 | 10 5/8 | 8 11/16 | 7 5/8 | 32.00 |
10 | 3 1/2 | 12 7/8 | 10 7/16 | 9 3/4 | 46.00 |
12 | 3 15/16 | 15 3/16 | 13 | 11 3/4 | 61.00 |
14 | 4 1/8 | 16 11/16 | 14 5/16 | 13 | 75.00 |
16 | 4 7/16 | 18 7/8 | 16 1/2 | 15 | 115.00 |
18 | 4 11/16 | 21 1/8 | 18 5/8 | 17 | 130.00 |
20 | 5 | 23 3/8 | 20 13/16 | 19 | 187.00 |
24 | 5 1/2 | 27 7/8 | 25 1/8 | 23 | 316.00 |
26 | 5 3/4 | 30 1/8 | 27 1/4 | 25 | 370.00 |
30, 36 and larger sizes available on application |
Conventional Run Size Combinations
Standard Weight Weldolet, Extra Strong Weldolet, | |||||||
Class 3000 Thredolet, Class 3000 Sockolet, Extra Strong Nipolet | |||||||
Run Sizes | Outlet Size Inches | ||||||
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | |
3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 1 | 1 1/4 | |
1/2 | 1/2 | 1 3/4 | 3/4 | 1 | 1 1/4 | 1 1/2 | |
1 3/4 | 1 3/4 | 1 1/2 - 1 1/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | |
2 1/2 - 1 1/4 | 1 1/2 - 1 1/4 | 36-3 | 1 1/2 - 1 1/4 | 2 1/2 - 2 | 2 | 2 1/2 | |
36-3 | 36-3 | flat | 2 1/2 - 2 | 5-3 | 2 1/2 | 3 1/2 - 3 | |
flat | flat | 8-3 | 12-6 | 3 1/2 - 3 | 5-4 | ||
36-10 | 36-14 | 5 - 4 | 8-6 | ||||
flat | flat | 10 - 6 | 18-10 | ||||
3/4 - 1/2 | 36 - 12 | 36-20 | |||||
36 - 1 | flat | flat | |||||
flat | |||||||
Outlet sizes 8, 10, 12, 14, 16. 18, 24, 26. 20 order to specific size combination. Size consolidation for Weldolets only |
Run Sizes | Outlet Size Inches | |||||||
1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | |
1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | |
2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | |
2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | |
3 | 4 - 3 1/2 | 4 | 5 | 6 | 8 | 10 | 14-12 | |
4 - 3 1/2 | 5 | 5 | 6 | 8 | 10 | 12 | 16 | |
6-5 | 6 | 6 | 8 | 10 | 14-12 | 14 | 18 | |
12-8 | 10-8 | 8 | 10 | 14-12 | 20-16 | 18-16 | 22-20 | |
24-14 | 18-12 | 12-10 | 14-12 | 20-16 | 22 | 22-20 | 28-24 | |
36-26 | 36-20 | 18-14 | 20-16 | 36-24 | 36-24 | 28-24 | 36-30 | |
flat | flat | 36-20 | 36-24 | flat | flat | 36-30 | flat | |
flat | flat | flat |
Class 6000 Thredolet, Class 6000 Sockolet, XXS Nipolet | ||||||||
Run Sizes | Outlet Size Inches | |||||||
1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
1/2 | 1/2 | 1 3/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | 2 1/2 | |
1 3/4 | 3/4 | 2 - 1 1/4 | 2 1/2 - 1 1/4 | 2 1/2 - 2 | 2 1/2 - 2 | 2 1/2 | 3 | |
2 1/2 - 1 1/4 | 1 | 6 - 2 1/2 | 10-3 | 10-3 | 3 1/2 - 3 | 3 1/2 - 3 | 4 | |
36-3 | 1 1/2 - 1 1/4 | 36-8 | 36-12 | 36-12 | 8-4 | 5-4 | 5 | |
flat | 2 1/2 - 2 | flat | flat | flat | 36-10 | 8-6 | 6 | |
8-3 | flat | 18-10 | 10-8 | |||||
36-10 | 36-20 | 20-12 | ||||||
flat | flat | 36-24 | ||||||
flat |
Schedule 160, XXS Weldolet | |||||||||
Run Sizes | Outlet Size Inches | ||||||||
1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
1/2 | 1 3/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
1 1/4 - 3/4 | 2 - 1 1/4 | 2 1/2 -1 1/4 | 2 1/2 -2 | 2 1/2 - 2 | 2 1/2 | 3 | 3 1/2 | 6 | |
36 - 1 1/2 | 6 - 2 1/2 | 10-3 | 10-3 | 3 1/2 -3 | 3 1/2 -3 | 3 1/2 | 4 | 8 | |
flat | 36-8 | 36-12 | 36-12 | 8-4 | 5-4 | 4 | 5 | 10 | |
flat | flat | flat | 20-10 | 8-6 | 5 | 6 | 12 | ||
22 | 18-10 | 8-6 | 8 | 14 | |||||
36-24 | 36-20 | 12-10 | 10 | 16 | |||||
flat | flat | 18-14 | 12 | 18 | |||||
36-20 | 14 | 20 | |||||||
flat | 16 | 22 | |||||||
18 | 24 | ||||||||
20 | |||||||||
22 | |||||||||
24 | |||||||||
flat |
BN-DS-C12 Pipe fitting weldolet overall dimensions
The below standard gives overall dimensions for study purposes of general weldolets.
HEADER | PIPE WEIGHT | WELDOLET SIZE | |||||||||||
SIZE | OR SCH. NR. | 2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
2" | STD-40 XS-80 |
70 | |||||||||||
XXS-160 | 87 | ||||||||||||
3" | STD-40 XS-80 |
84 | 91 | ||||||||||
XXS-160 | 101 | 119 | |||||||||||
4" | STD-40 XS-80 |
97 | 103 | 111 | |||||||||
XXS-160 | 114 | 132 | 144 | ||||||||||
STD-40 | 124 | 130 | 138 | 148 | |||||||||
6" | XS-80 | 124 | 130 | 138 | 165 | ||||||||
|
XXS-160 | 141 | 159 | 171 | 192 | ||||||||
STD-40 | 149 | 156 | 164 | 176 | 183 | ||||||||
8" | XS-80 | 149 | 156 | 164 | 191 | 197 | |||||||
XXS-160 | 167 | 184 | 197 | 218 | 224 | ||||||||
STD-40 | 176 | 183 | 191 | 205 | 210 | 218 | |||||||
10" | XS-80 | 176 | 183 | 191 | 218 | 238 | 235 | ||||||
XXS-160 | 194 | 211 | 224 | 245 | 251 | 265 | |||||||
STD | 202 | 208 | 216 | 228 | 255 | 245 | 251 | ||||||
12" | XS | 202 | 208 | 216 | 243 | 264 | 267 | 265 | |||||
XXS-160 | 219 | 237 | 249 | 270 | 276 | 291 | 324 | ||||||
14" | STD | 218 | 224 | 232 | 245 | 251 | 259 | 267 | 270 | ||||
XS | 218 | 224 | 231 | 239 | 279 | 270 | 278 | 286 | |||||
16" | STD | 243 | 249 | 257 | 270 | 276 | 284 | 292 | 295 | 300 | |||
XS | 243 | 249 | 257 | 284 | 305 | 293 | 303 | 306 | 319 | ||||
18" | STD | 268 | 275 | 283 | 295 | 302 | 310 | 318 | 321 | 325 | 335 | ||
XS | 268 | 275 | 283 | 310 | 330 | 321 | 329 | 332 | 338 | 352 | |||
20" | STD | 294 | 300 | 308 | 321 | 327 | 335 | 343 | 346 | 351 | 356 | 376 | |
XS | 294 | 300 | 308 | 335 | 356 | 346 | 354 | 557 | 364 | 370 | 386 | ||
24" | STD | 345 | 351 | 359 | 372 | 378 | 386 | 394 | 397 | 402 | 406 | 411 | 446 |
XS | 345 | 351 | 359 | 386 | 406 | 397 | 405 | 408 | 414 | 421 | 429 | 449 |
NOTES:
- WHEN A WELDOLET WITH A LIGHTER WALL THICKNESS, OTHER THAN THOSE LISTED, IS REQUIRED, USE THE DIMENSION OF THE NEAREST HEAVIER WALL.
- EXAMPLE FOR ORDERING WELDOLETS.
SIZE DESCRIPTION MATERIAL
10 x 4 WELDOLET SCH. 40 C.S
(Header size X Weldolet size)
