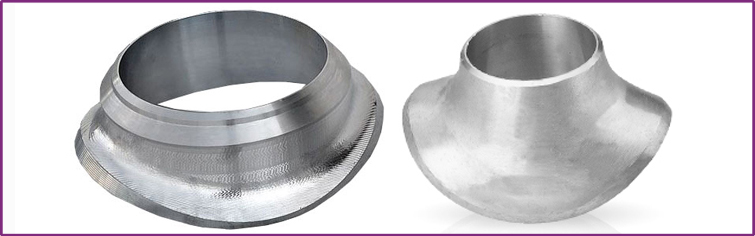

SWEEPOLET
Sweepolet Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
MATERIALS :
Stainless Steel -Sweepolet – SS -Sweepolet
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel -Sweepolet
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Alloy Steel -Sweepolet – AS -Sweepolet
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Carbon Steel -Sweepolet – CS -Sweepolet
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Low Temperature Carbon Steel -Sweepolet – LTCS -Sweepolet
A350 LF3/A350 LF2
Nickel Alloy -Sweepolet :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 -Sweepolet)
UNS 2200 (NICKEL 200 -Sweepolet)
UNS 2201 (NICKEL 201 -Sweepolet)
UNS 4400 (MONEL 400 Sweeepolet)
UNS 8020 (ALLOY 20 Swepolet)
UNS 8825 INCONEL 825 -Sweepolet)
UNS 6600 (INCONEL 600 -Sweepolet)
UNS 6601 (INCONEL 601 -Sweepolet)
UNS 6625 (INCONEL 625 -Sweepolet)
Copper Alloy -Sweepolet
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel -Sweepolet
C 71500 (CU -NI- 70/30) – Copper Nickel -Sweepolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
Dimensions
Run Size |
Outlet Size |
Dimensions |
|
*A |
B |
||
6 to 36 |
1 1/4 |
1 1/4 |
4 |
6 to 36 |
1 1/2 |
1 3/4 |
5 1/2 |
6 to 36 |
2 |
1 1/2 |
5 1/2 |
6 to 36 |
3 |
1 21/32 |
7 |
6 to 36 |
4 |
2 1/32 |
8 3/4 |
10 to 36 |
6 |
2 11/16 |
13 |
12 to 36 |
8 |
3 |
15 |
16 to 36 |
10 |
3 1/8 |
18 1/2 |
16 to 36 |
12 |
3 5/16 |
20 1/2 |
20 to 36 |
14 |
3 5/8 |
24 |
24 to 36 |
16 |
3 3/4 |
28 |
24 to 36 |
18 |
4 5/8 |
31 |
24 to 36 |
20 |
5 1/8 |
33 |
30 to 36 |
24 |
5 5/8 |
38 |
