OUTLETS
BRANZOLET

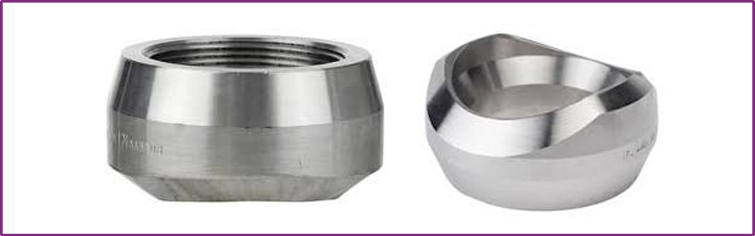

Brass Brazolet installation fittings with PVDF insert for the GF Signet 2551 insertion style Magmeter and the 515, 2536 & 2537 paddlewheel flow sensors.
- Up to 8 in. - PVDF insert, over 8 in. - PVC insert
- For use with copper pipe (SCH 40 ASTM)
- PTFE wetted material.

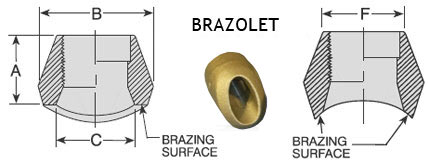

Dimensions
Brazolet® for IPS Pipe |
|||||
ASME SB-98 UNS C665500 Alloy A |
|||||
Outlet Sizes |
A |
B |
C |
Brazing Surface |
F-MIN. MIL-1183 |
1/4 |
11/16 |
1 |
9/16 |
0.188 |
0.700 |
3/8 |
13/16 |
1 1/4 |
3/4 |
0.190 |
0.855 |
1/2 |
1 |
1 7/16 |
7/8 |
0.220 |
1.020 |
3/4 |
1 1/16 |
1 3/4 |
1 1/8 |
0.240 |
1.250 |
1 |
1 1/4 |
2 1/8 |
1 7/16 |
0.270 |
1.535 |
1 1/4 |
1 5/16 |
2 9/16 |
1 3/4 |
0.300 |
1.900 |
1 1/2 |
1 3/8 |
2 7/8 |
2 |
0.330 |
2.160 |
2 |
1 1/2 |
3 1/2 |
2 9/16 |
0.360 |
2.675 |
2 1/2 |
1 13/16 |
4 1/8 |
3 |
0.384 |
3.215 |
3 |
2 |
4 13/16 |
3 11/16 |
0.442 |
3.880 |
4 |
2 1/4 |
6 |
4 3/4 |
0.476 |
4.940 |
5 |
2 5/8 |
7 1/16 |
5 9/16 |
0.656 |
6.163 |
Brazolet® for Tubing |
|||||
Type K, L, and M Tubing. ASME SB-98 UNS C65500 Alloy A |
|||||
Outlet Sizes |
A |
B |
C |
Brazing Surface |
F-MIN. MIL-1183 |
1/4 |
11/16 |
1 |
9/16 |
0.188 |
0.700 |
3/8 |
13/16 |
1 1/4 |
3/4 |
0.190 |
0.855 |
1/2 |
13/16 |
1 1/4 |
3/4 |
0.190 |
0.855 |
3/4 |
1 |
1 7/16 |
7/8 |
0.220 |
1.020 |
1 |
1 1/16 |
1 3/4 |
1 1/8 |
0.240 |
1.250 |
1 1/4 |
1 1/4 |
2 1/8 |
1 7/16 |
0.270 |
1.535 |
1 1/2 |
1 5/16 |
2 9/16 |
1 3/4 |
0.300 |
1.900 |
2 |
1 3/8 |
2 7/8 |
2 |
0.330 |
2.160 |
2 1/2 |
1 1/2 |
3 1/2 |
2 9/16 |
0.360 |
2.675 |
3 |
1 13/16 |
4 1/8 |
3 |
0.384 |
3.215 |
4 |
2 1/8 |
5 1/2 |
4 5/16 |
0.437 |
4.400 |
