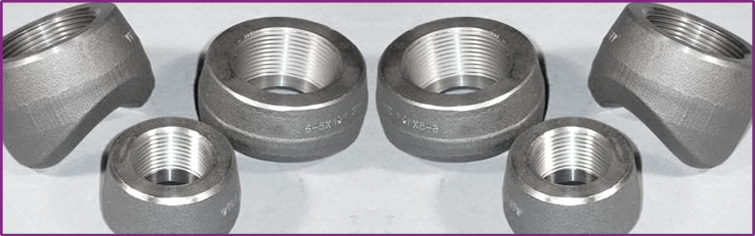

THREADOLET

THRADOLETS (3000 #)

Avail best quality Threadolets (3000 #), which have pressure grade of 3000LBSCH40, SCH80, STD, XS, 6000LBSCH160, XXS etc. The material used are carbon steel of A182 A105 and stainless steel of A182 F304, A182 F304L, A182 F316, A182 F316L, A182 F321 etc. The sizes of Threadolets (3000 #) we offer are from 1/8" to 20", thus meeting diverse needs. We also cater to custom configuration needs of clients.

THREADOLETS (6000 #)

We supply and export Threadolets (6000 #) in carbon steel of A182 A105 and in stainless steel of A182 F304, A182 F304L, A182 F316, A182 F316L, A182 F321 etc. These are available in sizes ranging from 1/8" ~ 20". The wide variety offered fulfills the different industrial demand and offers superb performance for long span of time. Durable in quality, our threadolets are preferred by many global buyers for quality & cost efficiency.

Threadolet : 1/2” to 24” in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75

Stainless Steel Threadolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L

Duplex Steel Sockolet
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Threadolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2
Grade : F42/46/52/56/60/65/70

Alloy Steel Threadolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91

Copper Alloy Threadolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640

Nickel Alloy ThreadoletStandard :

  • ASTM / ASME SB 564 / 160 / 472
  • Nickel 200 Threadolet – UNS N02200
  • Nickel 201 Threadolet – UNS N02201
  • Monel 400 Threadolet – UNS N04400
  • Monel K500 Threadolet – UNS N05500
  • Inconel K600 Threadolet – UNS N06600
  • Inconel 601 Threadolet – UNS N06601
  • Inconel 625 Threadolet – UNS N06625
  • Inconel 800 Threadolet– UNS N08800
  • Inconel 800H Threadolet – UNS N08810
  • Inconel 825 Threadolet – UNS N08825
  • Hastelloy C276 Threadolet – UNS N10276
  • Alloy 20 Threadolet – UNS N08020

Dimensions

Dimensions reducing and size on size Thredolets® acc to MSS-SP97

REDUCING SIZES
  NPS
Pressure Class 3000 - NPS 1/2 up to NPS 6
A
B
C
1/2
INCH
MM
1
25.40
1-13/32
35.71
15/16
23.81
3/4
INCH
MM
1-1/16
26.98
1-23/32
43.65
1-5/32
29.36
1
INCH
MM
1-5/16
33.33
2
50.80
1-7/16
36.51
1 ¼
INCH
MM
1-5/16
33.33
2-9/16
65.08
1-3/4
44.45
1 ½
INCH
MM
1-3/8
34.92
2-27/32
72.23
2
50.80
2
INCH
MM
1-1/2
38.10
3-15/32
88.10
2-9/16
65.08
2 ½
INCH
MM
1-13/16
46.03
4-1/16
103.18
3
76.20
3
INCH
MM
2
50.80
4-13/16
122.23
3-11/16
93.66
3 ½
INCH
MM
2-1/8
53.975
5-7/32
132.55
4
101.6
4
INCH
MM
2-1/4
57.15
5-31/32
151.60
4-3/4
120.65
5
INCH
MM
2-5/8
66.67
7-5/16
185.73
5-9/16
141.28
6
INCH
MM
2-3/4
69.85
8-5/8
219.07
6-11/16
169.86


REDUCING SIZES
  NPS
Pressure Class 6000 - NPS 1/2 up to NPS 2
A
B
C
1/2
INCH
MM
1-1/4
31.75
1-23/32
43.65
3/4
19.05
3/4
INCH
MM
1-7/16
36.51
1-61/64
49.60
1
25.40
1
INCH
MM
1-9/16
39.68
2-7/16
61.91
1-5/16
33.33
1 ¼
INCH
MM
1-5/8
41.27
2-23/32
69.05
1-1/2
38.10
1 ½
INCH
MM
1-11/16
42.86
3-1/4
82.55
1-15/16
49.21
2
INCH
MM
2-1/16
52.38
4-1/32
102.39
2-3/4
69.85


SIZE ON SIZE
  NPS
Pressure Class 3000 - NPS 1/2 up to NPS 6
A
B
C
D
1/2
INCH
MM
1
25.40
1-3/8
34.92
15/16
23.81
5/8
15.87
3/4
INCH
MM
1-1/16
26.98
1-5/8
41.27
1-3/16
30.16
13/16
20.63
1
INCH
MM
1-5/16
33.33
2
50.80
1-7/16
36.51
1-1/16
26.98
1 ¼
INCH
MM
1-5/16
33.33
2-3/8
60.32
1-3/4
44.45
1-3/8
34.92
1 ½
INCH
MM
1-3/8
34.92
2-7/8
73.02
2
50.80
1-5/8
41.27
2
INCH
MM
1-1/2
38.10
3-1/2
88.90
2-9/16
65.08
2-1/16
52.38
2 ½
INCH
MM
1-29/32
48.41
4-1/16
103.18
3
76.20
2-1/2
63.50
3
INCH
MM
2
50.80
4-13/16
122.23
3-11/16
93.66
3-1/16
77.78
3 ½
INCH
MM
2-1/8
53.97
5-3/8
136.52
4-7/16
112.71
3-9/16
90.48
4
INCH
MM
2-1/4
57.15
6-1/16
153.98
4-3/4
120.65
4-1/16
103.18
5
INCH
MM
2-7/16
61.91
7-1/4
184.15
5-1/4
133.35
5-1/4
133.35
6
INCH
MM
2-3/4
69.85
8-11/16
220.66
5-3/4
146.05
5-3/4
146.05
