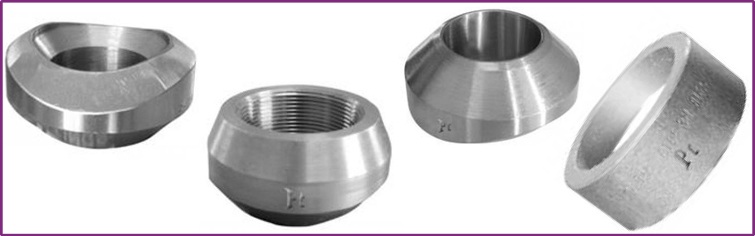

Butt Weld Flexolet
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

MATERIALS :

Stainless Steel Butt Weld Flexolet  – SS Butt Weld Flexolet
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Steel Butt Weld Flexolet
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Alloy Steel Butt Weld Flexolet – AS Butt Weld Flexolet
ASTM / ASME A/SA 182  F1/F5/F9/F11/F22/F91

Carbon Steel Butt Weld Flexolet – CS Butt Weld Flexolet
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Butt Weld Flexolet – LTCS Butt Weld Flexolet
A350 LF3/A350 LF2

Nickel Alloy Butt Weld Flexolet :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 Butt Weld Flexolet)
UNS 2200 (NICKEL 200 Butt Weld Flexolet)
UNS 2201 (NICKEL 201 Butt Weld Flexolet)
UNS 4400 (MONEL 400 Butt Weld Flexolet)
UNS 8020 (ALLOY 20 Butt Weld Flexolet)
UNS 8825 INCONEL 825 Butt Weld Flexolet)
UNS 6600 (INCONEL 600 Butt Weld Flexolet)
UNS 6601 (INCONEL 601 Butt Weld Flexolet)
UNS 6625 (INCONEL 625 Butt Weld Flexolet)

Copper Alloy Butt Weld Flexolet
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel Butt Weld Flexolet
C 71500 (CU -NI- 70/30) – Copper Nickel Butt Weld Flexolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO.  UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1

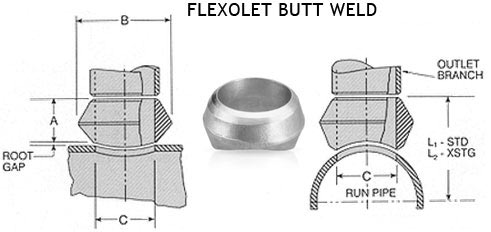

Dimensions

Standard	Outlet Size	Dimensions			Appx Weight
	Inches	A	B	C	Pounds
	3/8	3/4	1	0.493	0.10
	1/2	3/4	1 1/8	0.622	0.12
	3/4	7/8	1 1/2	0.824	0.22
	1	1 1/16	1 13/16	1.062	0.32
	1 1/4	1 1/4	2 1/4	1.38	0.64
	1 1/2	1 5/16	2 9/16	1.625	0.78
	2	1 1/2	3 5/16	2.313	1.14
	2 1/2	1 5/8	3 21/32	2.500	1.94
	3	1 3/4	4 9/32	3.125	2.60
	4	2	5 3/8	4.145	4.12
	6	2 3/8	7 21/32	6.112	11
Extra Strong	Outlet Size	Dimensions			Appx Weight
	Inches	A	B	C	Pounds
	3/8	3/4	1	0.423	0.10
	1/2	3/4	1 1/8	0.546	0.12
	3/4	7/8	1 1/2	0.742	0.18
	1	1 1/16	2 13/16	1.062	0.36
	1 1/4	1 1/4	2 1/4	1.278	0.55
	1 1/2	1 5/16	2 9/16	1.625	0.68
	2	1 1/2	3 5/16	2.313	1.24
	2 1/2	1 5/8	3 21/32	2.500	2.26
	3	1 3/4	4 9/32	3.125	2.84
	4	2	5 3/8	4.145	4.56
	6	3 1/16	7 23/32	5.800	15.00
