SOCKOLET

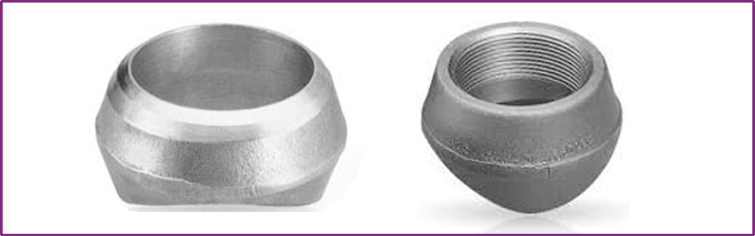

Our forged steel outlet fittings Sockolets (3000) is developed using different grade and material. The ideal run pipe sizes for sockolets 3000 is out let to 36". The inside bore, thread, socket bore and socket depth of sockolets 3000 is designed as per ANSI B16.11 but the pipe schedule numbers & weight designation is as per ANSI B36.10. We provide customization on our range as per the specification of clients.

Specifications

Outlet’s : 1/2” to 24” in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

Stainless Steel Sockolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Duplex Steel Sockolet
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Sockolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70

Alloy Steel Sockolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91

Copper Alloy Sockolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640

Nickel Alloy Sockolet Standard :

  • ASTM / ASME SB 564 / 160 / 472
  • Nickel 200 Sockolet – UNS N02200
  • Nickel 201 Sockolet – UNS N02201
  • Monel 400 Sockolet – UNS N04400
  • Monel K500 Sockolet – UNS N05500
  • Inconel K600 Sockolet – UNS N06600
  • Inconel 601 Sockolet – UNS N06601
  • Inconel 625 Sockolet – UNS N06625
  • Inconel 800 Sockolet – UNS N08800
  • Inconel 800H Sockolet – UNS N08810
  • Inconel 825 Sockolet – UNS N08825
  • Hastelloy C276 Sockolet – UNS N10276
  • Alloy 20 Sockolet – UNS N08020

Dimensions

Dimensions reducing and size on size Sockolets® acc to MSS-SP97

REDUCING SIZES

  NPS     Pressure Class 3000 - NPS 1/2 up to NPS 6
A B C D E
1/2
INCH
MM
1
25.40
1-13/32
35.71
29/32
23.01
0.622
15.80
9/16
14.28
3/4
INCH
MM
1-1/16
26.98
1-23/32
43.65
1-5/32
29.36
0.824
20.93
9/16
14.28
1
INCH
MM
1-5/16
33.33
2
50.8
1-7/16
36.51
1.049
26.64
25/32
19.84
1 ¼
INCH
MM
1-5/16
33.33
2-9/16
65.08
1-3/4
44.45
1.380
35.05
3/4
19.05
1 ½
INCH
MM
1-3/8
34.92
2-27/32
72.23
2
50.8
1.610
40.89
3/4
19.05
2
INCH
MM
1-1/2
38.1
3-15/32
88.10
2-9/16
65.08
2.067
52.50
13/16
20.63
2 ½
INCH
MM
1-9/16
39.68
4-1/16
103.18
3
76.2
2.469
62.71
3/4
19.05
3
INCH
MM
1-3/4
44.45
4-13/16
122.23
3-11/16
93.66
3.068
77.93
15/16
23.81
3 ½
INCH
MM
1-11/16
42.86
5-3/8
136.52
4-7/16
112.71
3.548
90.12
11/16
17.46
4
INCH
MM
1-7/8
47.62
5-31/32
151.60
4-3/4
120.65
4.026
102.26
1-1/16
26.98
5
INCH
MM
2-5/8
66.67
7-5/16
185.73
5-9/16
141.28
5.047
128.19
1-11/32
34.13
6
INCH
MM
2-3/4
69.85
8-5/8
219.07
6-11/16
169.86
6.065
154.05
1-13/32
35.71


REDUCING SIZES

  NPS     Pressure Class 6000 - NPS 1/2 up to NPS 2
A B C D E
1/2
INCH
MM
1-1/4
31.75
1-23/32
43.65
3/4
19.05
0.466
11.84
7/8
22.22
3/4
INCH
MM
1-7/16
36.51
1-61/64
49.60
1
25.4
0.614
15.60
7/8
22.22
1
INCH
MM
1-9/16
39.68
2-7/16
61.91
1-5/16
33.33
0.815
20.70
15/16
23.81
1 ¼
INCH
MM
1-5/8
41.27
2-23/32
69.05
1-1/2
38.1
1.160
29.46
13/16
20.63
1 ½
INCH
MM
1-11/16
42.86
3-1/4
82.55
1-15/16
49.21
1.338
33.99
7/8
22.22
2
INCH
MM
2-1/16
52.38
4-1/32
102.39
2-3/4
69.85
1.689
42.90
1-3/16
30.16



SIZE ON SIZE

  NPS     Pressure Class 3000 - NPS 1/2 up to NPS 6
A B C D E
1/2
INCH
MM
1
25.4
1-3/8
34.92
15/16
23.81
0.622
15.80
17/32
13.49
3/4
INCH
MM
1-1/16
26.98
1-5/8
41.27
1-3/16
30.16
0.824
20.93
15/32
11.90
1
INCH
MM
1-5/16
33.33
2
50.8
1-7/16
36.51
1.049
26.64
23/32
18.25
1 ¼
INCH
MM
1-5/16
33.33
2-3/8
60.32
1-3/4
44.45
1.380
35.05
9/16
14.28
1 ½
INCH
MM
1-3/8
34.92
2-7/8
73.02
2
50.8
1.610
40.89
21/32
16.66
2
INCH
MM
1-1/2
38.1
3-1/2
88.9
2-9/16
65.08
2.067
52.50
15/16
23.81
2 ½
INCH
MM
1-9/16
39.68
4-1/16
103.18
3
76.2
2.469
62.71
3/4
19.05
3
INCH
MM
1-3/4
44.45
4-13/16
122.23
3-11/16
93.66
3.068
77.93
15/16
23.81
3 ½
INCH
MM
1-11/16
42.86
5-3/8
136.52
4-7/16
112.71
3.548
90.12
11/16
17.46
4
INCH
MM
1-7/8
47.62
6-1/16
153.98
4-3/4
120.65
4.026
102.26
1-1/16
26.98
5
INCH
MM
2-7/16
61.91
7-1/4
184.15
5-1/4
133.35
5.047
128.19
1
25.4
6
INCH
MM
2-11/16
68.26
8-11/16
220.66
6-1/16
153.98
6.065
154.05
1-3/16
30.16
