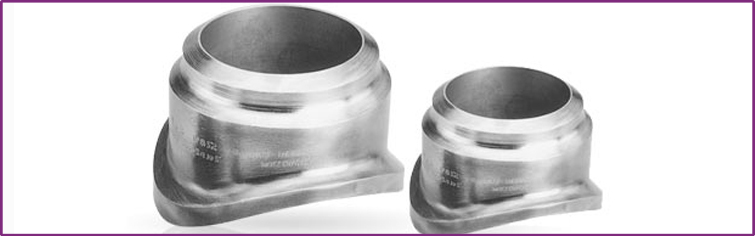

INSERT WELDOLET
We offer insert olets, steel insert olets, stainless steel insert olets, nickel alloy insert olets, copper aolloy insert olets, duplex steel insert olets, carbon steel insert olets and alloy steel insert olets.
FEATURES
Corrosion resistant
High tensile strength
Durable Easy installation
High temperature and pressure resistance
Stainless Steel Weldolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Duplex Steel Weldolet
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Weldolet
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Alloy Steel Weldolet
Standard : ASTM / ASME A/SA 182 / A 387
Grade : F5, F9, F11, F12, F22, F91.
Nickel Alloy Weldolet
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Copper Alloy Weldolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
DUPLEX STEEL INSERT WELDOLET

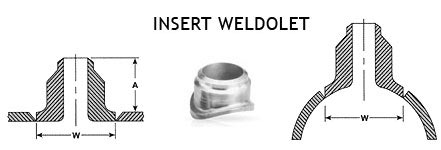

Dimensions
Outlet |
A' Dimensions (Height above run pipe) |
||||||||||||||
1 1/2 |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
Std Wt Run Pipe |
1.50 |
1.50 |
1.62 |
1.75 |
2.00 |
2.25 |
2.38 |
2.75 |
3.06 |
3.38 |
3.50 |
3.75 |
3.81 |
4 |
4.56 |
XS Run Pipe |
1.50 |
1.50 |
1.62 |
1.75 |
2.00 |
2.25 |
3.06 |
3.87 |
3.69 |
4.06 |
3.81 |
4.19 |
4.38 |
4.69 |
5.50 |
.500" to .750" Thick Run Pipe |
- |
- |
- |
2.88 |
3.31 |
3.75 |
4.12 |
4.18 |
4.25 |
4.37 |
4.50 |
4.69 |
5.13 |
5.62 |
6.50 |
.750" to 1.00" Thick Run Pipe |
- |
- |
- |
3.22 |
3.38 |
3.75 |
4.34 |
4.62 |
4.84 |
5.10 |
5.25 |
5.88 |
6.50 |
6.75 |
7.62 |
1.00" to 1.25" Thick Run Pipe |
- |
- |
- |
3.38 |
3.50 |
4.00 |
4.50 |
4.88 |
5.00 |
5.38 |
5.50 |
6.00 |
6.50 |
7.00 |
8.00 |
1.25" to 1.50" Thick Run Pipe |
- |
- |
- |
3.62 |
3.87 |
4.25 |
4.69 |
5.16 |
5.31 |
5.68 |
5.81 |
6.44 |
6.50 |
7.56 |
8.72 |
|
|||||||||||||||
Outlet |
*'W' Dimensions (Max. O.D. of fitting - Max. size of hole) |
||||||||||||||
1 1/2 |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
Std Wt Run Pipe |
3.50 |
4.25 |
4.88 |
5.69 |
7.00 |
8.06 |
9.71 |
11.71 |
14.00 |
16.32 |
17.56 |
19.75 |
22.00 |
24.00 |
29.00 |
XS Run Pipe |
3.56 |
4.38 |
5.00 |
5.75 |
7.12 |
8.25 |
10.44 |
13.44 |
14.25 |
16.56 |
18.00 |
20.00 |
22.44 |
25.00 |
30.32 |
