COUPOLET
We offers couplet olets, steel couplet olets, stainless steel couplet olets, nickel alloy couplet olets, copper alloy couplet olets, duplex steel couplet olets, carbon steel couplet olets and alloy steel couplet olets.
FEATURES
- High tensile strength
- Withstand high temperatures and pressure
- Hassle free performance
- Easy to install

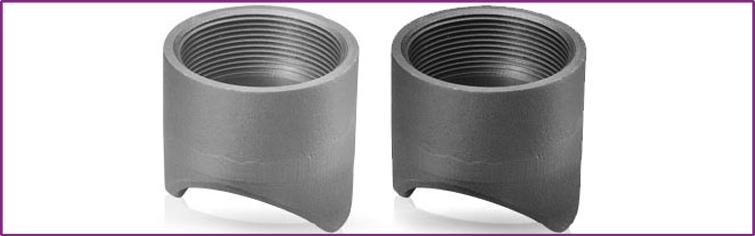

Coupolet
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
MATERIALS :
Stainless Steel Coupolet – SS Coupolet
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel Coupolet
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Alloy Steel Coupolet – AS Coupolet
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Carbon Steel Coupolet – CS Coupolet
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Low Temperature Carbon Steel Coupolet – LTCS Coupolet
A350 LF3/A350 LF2
Nickel Alloy Coupolet :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 Coupolet)
UNS 2200 (NICKEL 200 Coupolet)
UNS 2201 (NICKEL 201 Coupolet)
UNS 4400 (MONEL 400 Coupolet)
UNS 8020 (ALLOY 20 Coupolet)
UNS 8825 INCONEL 825 Coupolet)
UNS 6600 (INCONEL 600 Coupolet)
UNS 6601 (INCONEL 601 Coupolet)
UNS 6625 (INCONEL 625 Coupolet)
Copper Alloy Coupolet
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel Coupolet
C 71500 (CU -NI- 70/30) – Copper Nickel Coupolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1
Dimensions
| 300# Female Threaded Coupolet | |||
| Nominal Outlet Size |
Dimensions | ||
| A | C | F | |
| 1/2 | 15/16 | 0.745 | 1.188 |
| 3/4 | 1 | 0.958 | 1.441 |
| 1 | 1 3/16 | 1.188 | 1.562 |
| 1 1/4 | 1 5/16 | 1.550 | 1.906 |
| 1 1/2 | 1 9/16 | 1.780 | 2.188 |
| 2 | 1 11/16 | 2.260 | 2.750 |
| 2 1/2 | 1 13/16 | 2.890 | 3.386 |
| 3 | 2 1/2 | 3.400 | 4.000 |
| 4 | 3 | 4.380 | 5.000 |
| Interchangeability or Combination of Sizes | ||||||||||
| Coupolet Outlet Size Inches |
Run Sizes | |||||||||
| 1/2 | 1/2 | 3/4 | 1 1/4 -1 | 8-3 | 36-10 | |||||
| 3/4 | 3/4 | 1 | 2 - 1 1/4 | 36-8 | ||||||
| 1 | 1 | 1 1/4 | 2 - 1 1/2 | 8-5 | 36-10 | |||||
| 1 1/4 | 1 1/4 | 1 1/2 | 2 1/2 - 2 | 8-5 | 36-10 | |||||
| 1 1/2 | 1 1/2 | 2 | 2 1/2 | 8-5 | 16-10 | 36-18 | ||||
| 2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 16-12 | 36-18 |
| 2 1/2 | 2 1/2 | 3 | 3 1/2 | 5 | 6 | 8 | 12-10 | 16-14 | 36-18 | |
| 3 | 3 | 3 1/2 | 4 | 6 | 8 | 10 | 12 | 14 | 18-16 | 36-20 |
| 4 | 5 | 6 | 8 | 14-12 | 16 | 18 | 20 | 24 | 36 | |
