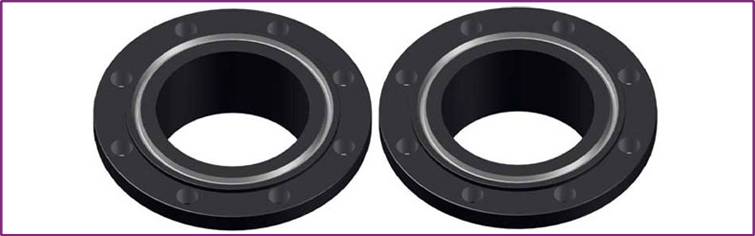

RING TYPE JOINT FLANGES

Our organization is involved in offering a wide range of Ring Joint Flanges, which is highly durable, resistance to heat, and has the ability to withstand any amount of stress. These Ring Type Joint Flanges are used in automobiles, and engineering related industries. We offer our range of Ring Joint Flanges in various dimensions and other technical specifications as per the specific requirements of our customers.



Range
½” (15 NB) to 48” (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. Available with NACE MR 01-75

Stainless Steel
Grade : 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 L, 317, 317L, 321, 347, 347 H, 409, 410, 410S, 420, 430L

Duplex Steel
Grade : 2205 (UNS No. S31803), 2507 (UNS No. S32750)

Nickel Alloy
Grade : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)

Copper Alloy
Grade : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)

Standard
  • ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
  • B.S : BS4504 , BS4504, BS1560, BS10
  • OTHER : PLATE, PLATE BLANK

Value Added Services
  • HOT DIPPED GALVANIZING
  • HEAT TREATMENT
  • CNC MACHINING
  • THREADING
