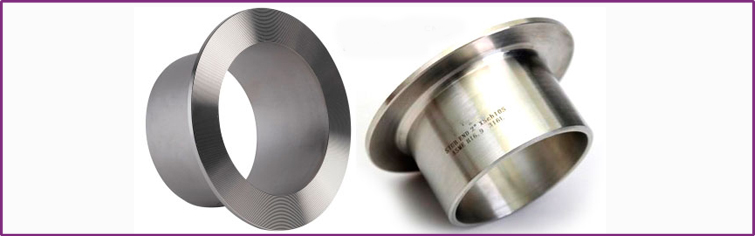

We are globally well renowned as the Best Quality Buttweld Fittings manufacturer in India. We cater an ample assortment of Buttweld Fittings which is incorporated using high technology machines. Our Buttweld Fittings are demanded by all due to their less maintenance, high tensile strength and excellent finish. High reliability and durability are the salient features of our Buttweld Fittings. We stand in the midst of predominant Buttweld Fittings suppliers in India. We deliver our Buttweld Fittings at very competitive prices and within the specified time.

Standards:	ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule:	Sch 5 TO Sch XXS.
Sizes:	1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )
Materials:	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type:	Butt Weld (BW)
Thickness:	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension:	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313



Dimensions

Product	Nom. Pipe Size	Diameter (G)	Length (J)	Outside Diameter (O.D.)	Schedule 10S Approx. Weight	Schedule 10S, Inside Diameter (I.D.)	Schedule 10S, Wall Thickness (T)	Schedule 5S Approx. Weight	Schedule 5S, Inside Diameter (I.D.)	Schedule 5S, Wall Thickness (T)
1 1/2" Lap- Joint Stub End / Stub Ends Short Type "C"	1.5	2.875	2	1.9	0.44	1.682	0.109	0.29	1.77	0.065
1 1/4" Lap- Joint Stub End / Stub Ends Short Type "C"	1.25	2.5	2	1.66	0.42	1.442	0.109	0.21	1.53	0.065
1" Lap- Joint Stub End / Stub Ends Short Type "C"	1	2	2	1.315	0.31	1.097	0.109	0.19	1.185	0.065
1/2" Lap- Joint Stub End / Stub Ends Short Type "C"	0.5	1.375	2	0.84	0.14	0.674	0.083	0.13	0.71	0.065
10" Lap- Joint Stub End / Stub Ends Short Type "C"	10	12.75	5	10.75	9.46	1042	0.165	7.48	10.482	0.134
12" Lap- Joint Stub End / Stub Ends Short Type "C"	12	15	6	12.75	16.07	12.39	0.18	15	12.438	0.156
14" Lap- Joint Stub End / Stub Ends Short Type "C"	14	16.25	6	14	23.1	13.624	0.188	19.2	13.688	0.156
16" Lap- Joint Stub End / Stub Ends Short Type "C"	16	18.5	6	16	27.2	15.624	0.188	23.9	15.67	0.165
18" Lap- Joint Stub End / Stub Ends Short Type "C"	18	21	6	18	32.4	17.624	0.188	28.5	17.67	0.165
2 1/2" Lap- Joint Stub End / Stub Ends Short Type "C"	2.5	4.125	2.5	2.875	1	2.635	0.12	0.75	2.709	0.083
2" Lap- Joint Stub End / Stub Ends Short Type "C"	2	3.625	2.5	2.375	0.81	2.157	0.109	0.44	2.245	0.065
20" Lap- Joint Stub End / Stub Ends Short Type "C"	20	23	6	20	47.7	19.564	0.218	36.3	19.624	0.188
24" Lap- Joint Stub End / Stub Ends Short Type "C"	24	27.25	6	24	58.27	23.5	0.25	56	23.564	0.218
3" Lap- Joint Stub End / Stub Ends Short Type "C"	3	5	2.5	3.5	1.25	3.26	0.12	0.94	3.334	0.083
3/4" Lap- Joint Stub End / Stub Ends Short Type "C"	0.75	1.688	2	1.05	0.18	0.884	0.083	0.14	0.92	0.065
4" Lap- Joint Stub End / Stub Ends Short Type "C"	4	6.188	3	4.5	1.88	4.26	0.12	1.38	4.334	0.083
5" Lap- Joint Stub End / Stub Ends Short Type "C"	5	7.313	3	5.563	2.63	5.295	0.134	2.06	5.345	0.109
6" Lap- Joint Stub End / Stub Ends Short Type "C"	6	8.5	3.5	6.625	3.56	6.357	0.134	2.75	6.407	0.109
8" Lap- Joint Stub End / Stub Ends Short Type "C"	8	10.625	4	8.625	6.19	8.329	0.148	3.88	8.407	0.109



STUB ENDS - Ansi and MSS SP-43 dimensions

STUB ENDS - ANSI B 16.9 and MSS SP-43 dimension
inches	ND	mm	Diameter of lap	Radius of fillet		Length F
D			G	R	R1	MSS SP43	ANSI B16.9
1/2	15	21,34	34,92	3,17	0,80	50,80	76,20
3/4	20	26,67	42,86	3,17	0,80	50,80	76,20
1	25	33,40	50,80	3,17	0,80	50,80	101,60
1 1/4	32	42,16	63,50	4,76	0,80	50,80	101,60
1 1/2	40	48,26	73,00	6,35	0,80	50,80	101,60
2	50	60,32	92,10	7,93	0,80	63,50	152,40
2 1/2	65	73,02	104,80	7,93	0,80	63,50	152,40
3	80	88,90	127,00	9,52	0,80	63,50	152,40
3 1/2	90	101,60	139,70	9,52	0,80	76,20	152,40
4	100	114,30	157,20	11,11	0,80	76,20	152,40
5	125	141,30	185,70	11,11	1,58	76,20	203,20
6	150	168,27	215,90	12,70	1,58	88,90	203,20
8	200	219,07	269,80	12,70	1,58	101,60	203,20
10	250	273,05	323,80	12,70	1,58	127,00	254,00
12	300	323,85	381,00	12,70	1,58	152,40	254,00
14	350	355,60	412,70	12,70	1,58	152,40	304,80
16	400	406,40	469,90	12,70	1,58	152,40	304,80
18	450	457,20	533,40	12,70	1,58	152,40	304,80
20	500	508,00	584,20	12,70	1,58	152,40	304,80
22	550	558,80	641,30	12,70	1,58	152,40	304,80
24	600	609,60	692,10	12,70	1,58	152,40	304,80
The lap thickness T shall not be less than nominal pipe wall thickness t

STUB ENDS - Ansi 16.9 tolerances

DIMENSIONAL TOLERANCES - STUB ENDS
For all fittings				Stub Ends
Nominal Pipe Size (NPS)	Outside Ø at Bevel	Indide Ø at End	Wall Thickness t / t1	O.D. of Lap G	Fillet Radius of Lap - R	Overall Length. - F
1/2 a 2 1/2	1	0,8	Not	+0 -1	+0 -1	2
3 a 3 1/2	1	1,6	less	+0 -1	+0 -1	2
4	+2 -1	1,6	than	+0 -1	+0 -2	2
5 a 6	+3 -1	1,6	87,50%	+0 -1	+0 -2	2
8	2	1,6	of nominal	+0 -1	+0 -2	2
10	+4 -3	3,2	tickness	+0 -2	+0 -2	2
12 to 18	+4 -3	3,2		+0 -2	+0 -2	3
20 a 24	+6 -5	4,8		+0 -2	+0 -2	3
26 a 30	+7 -5	4,8
32 a 48	+7 -5	4,8

STUB ENDS - Weights

NPS inches	STUB ENDS
	Sch. 5S	Sch. 10S	Sch. 40S	Sch. 80S
1/2	0.06	0.08	0.12	0.13
3/4	0.07	0.09	0.15	0.17
1	0.09	0.15	0.20	0.25
1 1/4	0.13	0.20	0.30	0.35
1 1/2	0.16	0.25	0.38	0.46
2	0.25	0.40	0.55	0.75
2 1/2	0.35	0.50	0.80	1.00
3	0.50	0.60	1.10	1.50
4	0.70	1.00	1.80	2.50
5	1.00	1.25	2.50	3.50
6	1.60	1.95	3.70	5.50
8	2.50	3.10	5.90	10.0
10	4.00	4.90	10.5	14.0
12	6.60	7.10	15.0	20.0
14	6.40	7.80	15.5	20.5
16	7.90	9.00	18.0	24.0
18	9.30	10.5	21.0	28.0
20	12.0	13.5	23.5	31.0
24	16.5	19.0	28.5	38.0
Approximate weights in kg, density 8 kg/dm3



STUB ENDS - End welding bevels
