We are globally well renowned as the Best Quality Buttweld Fittings manufacturer in India. We cater an ample assortment of Buttweld Fittings which is incorporated using high technology machines. Our Buttweld Fittings are demanded by all due to their less maintenance, high tensile strength and excellent finish. High reliability and durability are the salient features of our Buttweld Fittings. We stand in the midst of predominant Buttweld Fittings suppliers in India. We deliver our Buttweld Fittings at very competitive prices and within the specified time.

Standards:	ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule:	Sch 5 TO Sch XXS.
Sizes:	1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )
Materials:	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type:	Butt Weld (BW)
Thickness:	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension:	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

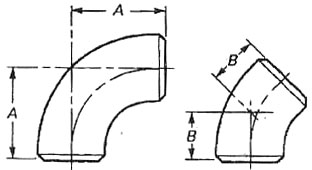

DIMENSIONS OF  SEAMLESS BUTT WELDING ELBOWS

FACTORY-MADE WROUGHT BUTTWELDING FITTINGS

Nominal   Pip  Size (NPS)	DN	Outside Diameter at Bevel	Center- to-End
			45º Elbow   B	90º Elbow   A
			Long Radius	Long Radius	Short Radius
1/2		21.3	16	38
3/4		26.7	19	38
1	25	33.4	22	38	25
1-1/4	32	42.2	25	48	32
1-1/2	40	48.3	28	57	38
2	50	60.3	35	76	51
2-1/2	65	73.0	45	95	64
3	80	88.9	51	114	76
3-1/2	90	101.6	57	133	89
4	100	114.3	64	152	102
5	125	141.3	79	191	127
6	150	168.3	95	229	152
8	200	219.1	127	305	203
10	250	273.0	159	381	254
12	300	323.8	191	457	305
14	350	355.6	222	533	356
16	400	406.4	254	610	406
18	450	457	286	686	457
20	500	508	318	762	508
22	550	559	343	838	559
24	600	610	381	914	610
