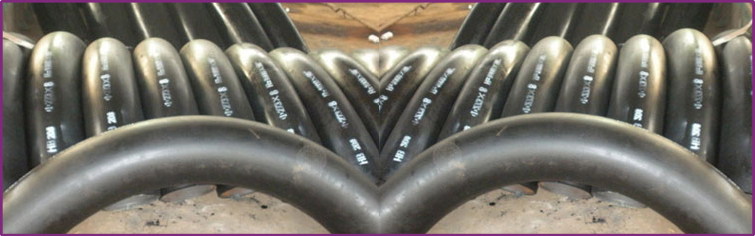

LONG RADIUS BEND
We are globally well renowned as the Best Quality Buttweld Fittings manufacturer in India. We cater an ample assortment of Buttweld Fittings which is incorporated using high technology machines. Our Buttweld Fittings are demanded by all due to their less maintenance, high tensile strength and excellent finish. High reliability and durability are the salient features of our Buttweld Fittings. We stand in the midst of predominant Buttweld Fittings suppliers in India. We deliver our Buttweld Fittings at very competitive prices and within the specified time.
Standard: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS P2311/2312
Thickness: SGP, STD, SCH40, SCH80, SCH160. XS,XXS and so on
Size: 1/2"--60"
Material: Carbon steel , alloy steel, stainless steel
Surface treatment: Transparent oil, rust-proof black oil or hot galvanized.
Payment:T/T OR L/C.
Major Products: Seamless pipes,Elbow, Reducer, Tee, Pipe Cap, Flange and etc...
MATERIAL：A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L.A403-WP316.A403-WP316L.
BENDING RADIUS (R)： R=3D、4D、5D、6D、7D、8D、9D、10D。
BENDING ANGLE (θ)：15°、30°、45°、60°、90°、135°, 180°，and also could manufacture according the angles given by the clients.
STRAIGHT LENGTH (L)： The length between two ends general from 300mm-1500mm, and also can product according to the clients' requirement to product.
OUTER DIAMETER (D)： D≤1220mm
WALL THICKNESS (T)： T≤120mm
END BEVEL： according to the bevel of welding pipe fittings construction
WEIGHT： WEIGHT (Kg)=[0.0433(D-T)TRθ]/100000+L(the weight of two ends straight bend)
Size
Seamless bend: 1/2"～24" DN15～DN600
Welding bend: 6"～60" DN150～DN1500
Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. wall thickness: 200mm
Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Standards
SY/T5257-2004
DL/T515-2004 GD2000 GD87-1101
ASME B16.49-2007 ASME B16.25-2007
Industrial Processes
Bending, squeezing, pressing, forging, machining and more
Industries Served
Our pipe bends are widely used in many industries, such as power generation, petroleum, natural gas, chemicals, shipbuilding, construction, papermaking, metallurgy and so on.
Production range |
||
Seamless bends |
Welding bends |
|
Outside diameter |
1/2"～24" |
6"～60" |
Wall thickness |
4mm～200mm |
|
Bending radius |
R=3D～10D |
|
Product angle |
0°～180° |
|
Dimensions
3D Bend Pipes
Specifications :
RANGE : 2"NB TO 18" NB ANSI B 16.9 IN
SCH : 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
High pressure stainless steel pipe/ R = 3DH pipe size
Nominal |
DN |
Thread |
Pipe Specification |
L1 |
L2 |
L3 |
L |
R |
|---|---|---|---|---|---|---|---|---|
32.0 |
175 |
M240×6 |
245×36 |
120 |
130 |
360 |
1095 |
735 |
200 |
M265×6 |
273×40 |
130 |
140 |
390 |
1209 |
819 |
|
225 |
M320×6 |
325×50 |
175 |
185 |
525 |
1500 |
975 |
|
250 |
M350×6 |
355.6×55 |
195 |
205 |
580 |
1650 |
1070 |
|
22.0 |
175 |
M215×6 |
219×24 |
100 |
110 |
300 |
957 |
657 |
200 |
M240×6 |
245×26 |
110 |
120 |
330 |
1065 |
735 |
|
225 |
M265×6 |
273×29 |
115 |
125 |
345 |
1164 |
819 |
|
250 |
M295×6 |
299×32 |
120 |
130 |
360 |
1257 |
897 |
5D Pipe Bend
Specifications :RANGE : 2"NB TO 18" NB ANSI B 16.9 IN
SCH : 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
Long Radius Bend
Specifications :RANGE : 2"NB TO 18" NB ANSI B 16.9 IN
SCH : 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
