REDUCING TEE
We are globally well renowned as the Best Quality Buttweld Fittings manufacturer in India. We cater an ample assortment of Buttweld Fittings which is incorporated using high technology machines. Our Buttweld Fittings are demanded by all due to their less maintenance, high tensile strength and excellent finish. High reliability and durability are the salient features of our Buttweld Fittings. We stand in the midst of predominant Buttweld Fittings suppliers in India. We deliver our Buttweld Fittings at very competitive prices and within the specified time.
| Standards: | ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” ) |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | Outside diameter : 1/2" à 24" Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS |

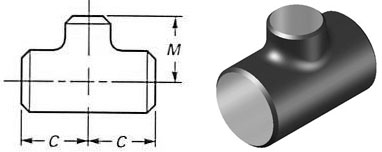

Dimensions
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
| 1/2" | 1/4" 3/8" |
21.3 | 13.7 17.3 |
25 | 25 |
| 3/4" | 3/8" 1/2" |
26.7 | 17.3 21.3 |
29 | 29 |
| 1" | 1/2" 3/4" |
33.4 | 21.3 26.7 |
38 | 38 |
| 1 1/4" | 1/2" 3/4" 1" |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
| 1 1/2" | 1/2" 3/4" 1" 1 1/4" |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
| 2" | 3/4" 1" 1 1/4" 1 1/2" |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44 51 57 60 |
| 2 1/2" | 1" 1 1/4" 1 1/2" 2" |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57 64 67 70 |
| 3" | 1 1/4" 1 1/2" 2" 2 1/2" |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70 73 76 83 |
| 3 1/2" | 1 1/2" 2" 2 1/2" 3" |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
| 4" | 1 1/2" 2" 2 1/2" 3" 3 1/2" |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
| 5" | 2" 2 1/2" 3" 3 1/2" 4" |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
| 6" | 2 1/2" 3" 3 1/2" 4" 5 |
168.3 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
| 8" | 3 1/2" 4" 5" 6" |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
| 10" | 4" 5" 6" 8" |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
| 12" | 5" 6" 8" 10" |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
| 14" | 6" 8" 10" 12" |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
| 16" | 6" 8" 10" 12" 14" |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
| 18" | 8" 10" 12" 14" 16" |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
| 20" | 8" 10" 12" 14" 16" 18" |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
| 22" | 10" 12" 14" 16" 18" 20" |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
| 24" | 10" 12" 14" 16" 18" 20" 22" |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |
The dimensions are in millimeters
Source : ASME B16.9 - 2007
