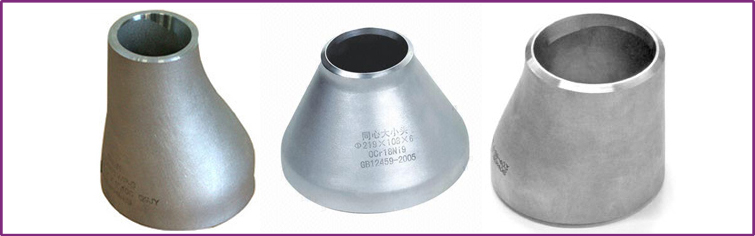

CONCENTRIC REDUCER

We are globally well renowned as the Best Quality Buttweld Fittings manufacturer in India. We cater an ample assortment of Buttweld Fittings which is incorporated using high technology machines. Our Buttweld Fittings are demanded by all due to their less maintenance, high tensile strength and excellent finish. High reliability and durability are the salient features of our Buttweld Fittings. We stand in the midst of predominant Buttweld Fittings suppliers in India. We deliver our Buttweld Fittings at very competitive prices and within the specified time.

Standards:ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule:Sch 5 TO Sch XXS.
Sizes:1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials:Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type:Butt Weld (BW)
Thickness:Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension:ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313



Dimensions


Nominal Diameter
Outside Diameter
End to End
D1*D2
DNNPSSeries ASeries BH
20×153/4×1/226.9×21.325×1838
20×103/4×3/826.9×17.325×1438
25×201×3/433.7×26.932×2551
25×151×1/233.7×21.332×1851
32×251.1/4×142.4×33.738×3251
32×201.1/4×3/442.4×26.938×2551
32×151.1/4×1/242.4×21.338×1851
40×321.1/2×1.1/448.3×42.445×3864
40×251.1/2×148.3×33.745×3264
40×201.1/2×3/448.3×26.945×2564
40×151.1/2×1/248.3×21.345×1864
50×402×1.1/260.3×48.357×4576
50×322×1.1/460.3×42.457×3876
50×252×160.3×33.757×3276
50×202×3/460.3×26.957×2576
65×502.1/2×273.0×60.376×5789
65×402.1/2×1.1/273.0×48.376×4589
65×322.1/2×1.1/473.0×42.476×3889
65×252.1/2×173.0×33.776×3289
80×653×2.1/288.9×73.089×7689
80×503×288.9×60.389×5789
80×403×1.1/288.9×48.389×4589
80×323×1.1/488.9×42.489×3889
90×803.1/2×3101.6×88.9-102
90×653.1/2×2.1/2101.6×73.0-102
90×503.1/2×2101.6×60.3-102
90×403.1/2×1.1/2101.6×48.3-102
90×323.1/2×1.1/4101.6×42.4-102
100×904×3.1/2114.3×101.6-102
100×804×3114.3×88.9108×89102
100×654×2.1/2114.3×73.0108×76102
100×504×2114.3×60.3108×57102
100×404×1.1/2114.3×48.3108×45102
125×1005×4141.3×114.3133×108127
125×905×3.1/2141.3×101.6-127
125×805×3141.3×88.9133×89127
125×655×2.1/2141.3×73.0133×76127
125×505×2141.3×60.3133×57127
150×1256×5168.3×141.3159×133140
150×1006×5168.3×114.3159×108140
150×906×3.1/2168.3×101.6-140
150×806×3168.3×88.9159×89140
150×656×2.1/2168.3×73.0159×76140
200×1508×6219.1×168.3219×159152
200×1258×5219.1×141.3219×133152
200×1008×4219.1×114.3219×108152
200×908×3.1/2219.1×101.6-152
250×20010×8273.0×219.1273×219178
250×15010×6273.0×168.3273×159178
250×12510×5273.0×141.3273×133178
250×10010×4273.0×114.3273×108178
300×25012×10323.9×273.1325×273203
300×20012×8323.9×219.1325×219203
300×15012×6323.9×168.3325×159203
300×12512×5323.9×141.3325×133203
350×30014×12355.6×323.9377×325330
350×25014×10355.6×273.0377×273330
350×20014×8355.6×219.1377×219330
350×15014×6355.6×168.3377×159330
400×35016×14406.4×355.6426×377356
400×30016×12406.4×323.9426×325356
400×25016×10406.4×273.0426×273356
400×20016×8406.4×219.1426×219356
450×40018×16457×406.4478×426381
450×35018×14457×355.6478×377381
450×30018×12457×323.9478×325381
450×25018×10457×273.0478×273381
500×45020×18508×457529×478508
500×40020×16508×406.4529×426508
500×35020×14508×355.6529×377508
500×30020×12508×323.9529×325508
550×50022×20559×508-508
550×45022×18559×457-508
550×40022×16559×406.4-508
550×35022×14559×355.6-508
600×55024×22610×559-508
600×50024×20610×508630×529508
600×45024×18610×457630×478508
600×40024×22610×406.4630×426508
650×60026×24660×610-610
650×55026×22660×559-610
650×50026×20660×508-610
650×45026×18660×457-610
700×65028×26711×660-610
700×60028×24711×610720×630610
700×55028×22711×559-610
700×50028×20711×508720×530610
750×70030×28762×711-610
750×65030×26762×660-610
750×60030×24762×610-610
750×55030×22762×559-610
800×75032×30813×762-610
800×70032×28813×711820×720610
800×65032×26813×660-610
800×60032×24813×610820×630610
850×80034×32864×813-610
850×75034×30864×762-610
850×70034×28864×711-610
850×65034×26864×660-610
900×85036×34914×864-610
900×80036×32914×813920×820610
900×75036×30914×762-610
900×70036×28914×711920×720610
950×90038×36965×914-610
950×85038×34965×864-610
950×80038×32965×813-610
950×75038×30965×762-610
1000×95040×381016×965-610
1000×90040×361016×9141020×920610
1000×85040×341016×864-610
1000×80040×321016×8131020×820610
1050×100042×401067×1016-610
1050×95042×381067×965-610
1050×90042×361067×914-610
1050×85042×341067×864-610
1100×105044×421118×1067-610
1100×100044×401118×10161120×1020610
1100×95044×381118×965-610
1100×90044×361118×9141220×920610
1150×110046×441168×1118-711
1150×105046×421168×1067-711
1150×100046×401168×1016-711
1150×95046×381168×965-711
1200×115048×461220×1168-711
1200×110048×441220×11181220×1120711
1200×105048×421220×1067-711
1200×100048×401220×10161220×1020711
