BUTTWELD FITTINGS

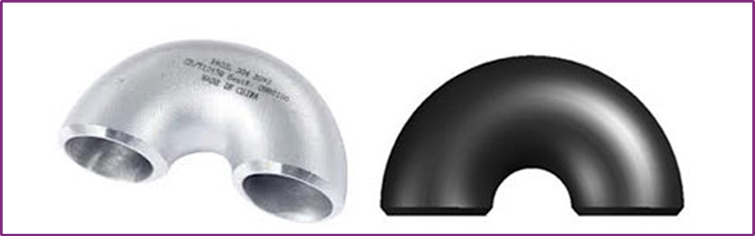

180° SHORT RADIUS ELBOW

We are globally well renowned as the Best Quality Buttweld Fittings manufacturer in India. We cater an ample assortment of Buttweld Fittings which is incorporated using high technology machines. Our Buttweld Fittings are demanded by all due to their less maintenance, high tensile strength and excellent finish. High reliability and durability are the salient features of our Buttweld Fittings. We stand in the midst of predominant Buttweld Fittings suppliers in India. We deliver our Buttweld Fittings at very competitive prices and within the specified time.

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: Diameters - from 21,3 to 711 mm.
Wall Thickness - from 2 to 40 mm.
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313



Dimensions

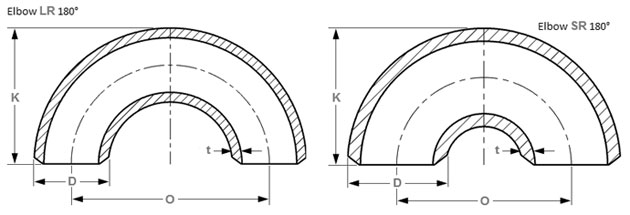

Dimensions Butt Weld Elbows 180° LR & SR ASME B16.9

NPS O.D.
D
180° Long Radius 180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
1/2 21.3 76 48 - -
3/4 26.7 76 51 - -
1 33.4 76 56 51 41
42.2 95 70 64 52
48.3 114 83 76 62
2 60.3 152 106 102 81
73 190 132 127 100
3 88.9 229 159 152 121
101.6 267 184 178 140
NPS O.D.
D
180° Long Radius 180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
NPS O.D.
D
180° Long Radius 180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
4 114.3 305 210 203 159
5 141.3 381 262 254 197
6 168.3 457 313 305 237
8 219.1 610 414 406 313
10 273 762 518 508 391
12 323.8 914 619 610 467
14 355.6 1067 711 711 533
16 406.4 1219 813 813 610
18 457 1372 914 914 686
20 508 1524 1016 1016 762
22 559 1676 1118 1118 838
24 610 1829 1219 1219 914
NPS O.D.
D
180° Long Radius 180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

Dimensional Tolerances of Butt Weld Elbows 180° LR and SR ASME B16.9

Nominal Pipe Size 1/2 to 2½ 3 to 3½ 4 5 to 8 10 to 18 20 to 24
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.6 1.6 + 2.4
- 1.6
+ 4
- 3.2
+ 6.4
- 4.8
Inside Diameter at End 0.8 1.6 1.6 1.6 3.2 4.8
Center to Center (O) 6 6 6 6 10 10
Back to Face (K) 6 6 6 6 6 6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.

ELBOWS - Ansi 16.9 tolerances

DIMENSIONAL TOLERANCES - ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Inside Ø
at End
Wall Thickness
t / t1
Center to End Dim. A-B-C-M Center to Center Dim.
O
Back to Face Dim.
K
Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2   3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ..... ..... .....
32 a 48 +7 -5 4,8   5 ..... ..... .....

Angularity Tolerances
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20



ELBOWS - End welding bevels
