EN 1092-1 FLANGE PN6-PN40
We are involved in offering a quality range of Industrial Flanges, which is high in durability and can withstand extreme conditions. These industrial flanges are available in different grades, class, and other technical specifications as per the client’s requirements. Our range is commonly used to connect other threaded components in low pressure and non-critical applications.
Dimensions
> TYPE 01 Flange
> TYPE 02 Flange

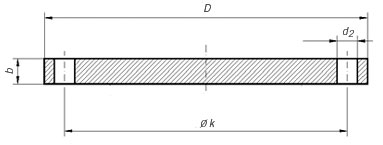

> TYPE 05 Flange

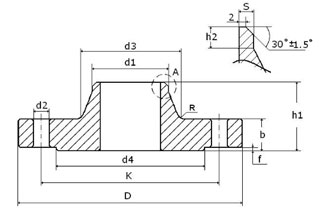

> TYPE 11 Flange

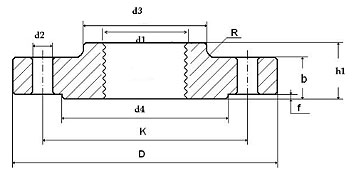

> TYPE 13 Flange

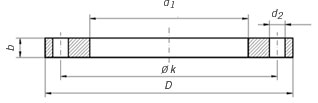

EN 1092-1 TYPE 01 Flange Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 01 Flange
EN 1092-1 TYPE 01 PN6 PLATE FLANGE | |||||||||
Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
200 | 219,1 | 221,5 | 280 | 320 | 22 | 18 | M16 | 8 | 6,862 |
250 | 273,0 | 276,5 | 335 | 375 | 24 | 18 | M16 | 12 | 8,893 |
300 | 323,9 | 327,5 | 395 | 440 | 24 | 22 | M20 | 12 | 11,880 |
350 | 355,6 | 359,5 | 445 | 490 | 26 | 22 | M20 | 12 | 16,788 |
400 | 406,4 | 411,0 | 495 | 540 | 28 | 22 | M20 | 16 | 19,781 |
450 | 457,0 | 462,0 | 550 | 595 | 30 | 22 | M20 | 16 | 24,495 |
500 | 508,0 | 513,5 | 600 | 645 | 30 | 22 | M20 | 20 | 26,307 |
600 | 610,0 | 616,5 | 705 | 755 | 32 | 26 | M24 | 20 | 34,702 |
700 | 711,0 | 714,2 | 810 | 860 | 40 | 26 | M24 | 24 | 52,441 |
800 | 813,0 | 815,8 | 920 | 975 | 44 | 30 | M27 | 24 | 71,262 |
900 | 914,0 | 917,4 | 1020 | 1075 | 48 | 30 | M27 | 24 | 86,269 |
1000 | 1016,0 | 1019,0 | 1120 | 1175 | 52 | 30 | M27 | 28 | 101,340 |
1200 | 1220,0 | 1224,0 | 1340 | 1405 | 60 | 33 | M30 | 32 | 162,638 |
1400 | 1420,0 | 1424,0 | 1560 | 1630 | 72 | 36 | M33 | 36 | 257,772 |
1600 | 1620,0 | 1624,0 | 1760 | 1830 | 80 | 36 | M33 | 40 | 324,382 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN6 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 01 PN10 PLATE FLANGE | |||||||||
Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
200 | 219,1 | 221,5 | 295 | 340 | 24 | 22 | M20 | 8 | 9,244 |
250 | 273,0 | 276,5 | 350 | 395 | 26 | 22 | M20 | 12 | 11,788 |
300 | 323,9 | 327,5 | 400 | 445 | 26 | 22 | M20 | 12 | 13,578 |
350 | 355,6 | 359,5 | 460 | 505 | 30 | 22 | M20 | 16 | 21,766 |
400 | 406,4 | 411,0 | 515 | 565 | 32 | 26 | M24 | 16 | 27,436 |
450 | 457,2 | 462,0 | 565 | 615 | 36 | 26 | M24 | 20 | 33,470 |
500 | 508,0 | 513,5 | 620 | 670 | 38 | 26 | M24 | 20 | 40,103 |
600 | 610,0 | 616,5 | 725 | 780 | 42 | 30 | M27 | 20 | 54,297 |
700 | 711,0 | 714,2 | 840 | 895 | 50 | 30 | M27 | 24 | 82,777 |
800 | 813,0 | 815,8 | 950 | 1015 | 56 | 33 | M30 | 24 | 116,534 |
900 | 914,0 | 917,4 | 1050 | 1115 | 62 | 33 | M30 | 28 | 141,425 |
1000 | 1016,0 | 1019,0 | 1160 | 1230 | 70 | 36 | M33 | 28 | 188,561 |
1200 | 1219,0 | 1224,0 | 1380 | 1455 | 83 | 39 | M36 | 32 | 290,884 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN10 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 01 PN16 PLATE FLANGE | |||||||||
Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
10 | 17,2 | 18,0 | 60 | 90 | 14 | 14 | M12 | 4 | 0,602 |
15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
65 | 76,1 | 77,5 | 145 | 185 | 20 | 18 | M16 | 4 | 3,310 |
80 | 88,9 | 90,5 | 160 | 200 | 20 | 18 | M16 | 8 | 3,592 |
100 | 114,3 | 116,0 | 180 | 220 | 22 | 18 | M16 | 8 | 4,375 |
125 | 139,7 | 141,5 | 210 | 250 | 22 | 18 | M16 | 8 | 5,394 |
150 | 168,3 | 170,5 | 240 | 285 | 24 | 22 | M20 | 8 | 7,123 |
200 | 219,1 | 221,5 | 295 | 340 | 26 | 22 | M20 | 12 | 9,705 |
250 | 273,0 | 276,5 | 355 | 405 | 29 | 26 | M24 | 12 | 14,164 |
300 | 323,9 | 327,5 | 410 | 460 | 32 | 26 | M24 | 12 | 18,928 |
350 | 355,6 | 359,0 | 470 | 520 | 35 | 26 | M24 | 16 | 28,118 |
400 | 406,4 | 411,0 | 525 | 580 | 38 | 30 | M27 | 16 | 35,754 |
450 | 457,0 | 462,0 | 585 | 640 | 42 | 30 | M27 | 20 | 45,992 |
500 | 508,0 | 513,5 | 650 | 715 | 46 | 33 | M30 | 20 | 63,832 |
600 | 610,0 | 616,5 | 770 | 840 | 55 | 36 | M33 | 20 | 101,285 |
700 | 711,0 | 714,2 | 840 | 910 | 63 | 36 | M33 | 24 | 111,103 |
800 | 813,0 | 815,8 | 950 | 1025 | 74 | 39 | M36 | 24 | 158,555 |
900 | 914,0 | 917,4 | 1050 | 1125 | 82 | 39 | M36 | 28 | 192,239 |
1000 | 1016,0 | 1019,0 | 1170 | 1255 | 90 | 42 | M39 | 28 | 269,554 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN16 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 01 PN25 PLATE FLANGE | |||||||||
Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
200 | 219,1 | 221,5 | 310 | 360 | 32 | 26 | M24 | 12 | 14,245 |
250 | 273,0 | 276,5 | 370 | 425 | 35 | 30 | M27 | 12 | 20,087 |
300 | 323,9 | 327,5 | 430 | 485 | 38 | 30 | M27 | 16 | 26,526 |
350 | 355,6 | 359,5 | 490 | 555 | 42 | 33 | M30 | 16 | 41,656 |
400 | 406,4 | 411,0 | 550 | 620 | 48 | 36 | M33 | 16 | 57,456 |
450 | 457,0 | 462,0 | 600 | 670 | 54 | 36 | M33 | 20 | 69,548 |
500 | 508,0 | 513,5 | 660 | 730 | 58 | 36 | M33 | 20 | 86,736 |
600 | 610,0 | 616,5 | 770 | 845 | 68 | 39 | M36 | 20 | 126,866 |
700 | 711,2 | 714,0 | 875 | 960 | 85 | 42 | M39 | 24 | 193,031 |
800 | 812,8 | 816,0 | 990 | 1085 | 95 | 48 | M45 | 24 | 266,311 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN25 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 01 PN40 PLATE FLANGE | |||||||||
Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
200 | 219,1 | 221,5 | 320 | 375 | 36 | 30 | M27 | 12 | 17,871 |
250 | 273,0 | 276,5 | 385 | 450 | 42 | 33 | M30 | 12 | 29,166 |
300 | 323,9 | 327,5 | 450 | 515 | 52 | 33 | M30 | 16 | 44,921 |
350 | 355,6 | 359,5 | 510 | 580 | 58 | 36 | M33 | 16 | 66,460 |
400 | 406,4 | 411,0 | 585 | 660 | 65 | 39 | M36 | 16 | 96,822 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN40 / P245GH / HEAT NUMBER |

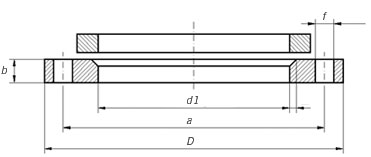

EN 1092-1 TYPE 02 Flange Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 02 Flange
EN 1092-1 TYPE 02 PN10 LOOSE FLANGE | |||||||||
Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) |
||||||
d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,654 |
20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 8 | 2,520 |
65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 8 | 3,050 |
80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,480 |
100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,200 |
125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,210 |
150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,890 |
200 | 226 | 295 | 340 | 24 | 6 | 22 | M20 | 8 | 8.870 |
250 | 281 | 350 | 395 | 26 | 8 | 22 | M20 | 12 | 11,200 |
300 | 333 | 400 | 445 | 26 | 8 | 22 | M20 | 12 | 12,800 |
350 | 365 | 460 | 505 | 30 | 8 | 22 | M20 | 16 | 19,400 |
400 | 416 | 515 | 565 | 32 | 8 | 26 | M24 | 16 | 26,400 |
450 | 467 | 565 | 615 | 36 | 8 | 26 | M24 | 20 | 32,200 |
500 | 519 | 620 | 670 | 38 | 8 | 26 | M24 | 20 | 38,500 |
600 | 622 | 725 | 780 | 42 | 8 | 30 | M27 | 20 | 52,200 |
700 | 721 | 840 | 895 | 50 | 8 | 30 | M27 | 24 | 79,400 |
800 | 824 | 950 | 1015 | 56 | 8 | 33 | M30 | 24 | 112,000 |
900 | 926 | 1050 | 1115 | 62 | 8 | 33 | M30 | 28 | 135,000 |
1000 | 1028 | 1160 | 1230 | 70 | 8 | 36 | M33 | 28 | 180,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN6 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 02 PN16 LOOSE FLANGE | |||||||||
Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) |
||||||
d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,655 |
20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 4 | 2,668 |
65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 4 | 3,241 |
80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,512 |
100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,247 |
125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,258 |
150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,945 |
200 | 226 | 295 | 340 | 26 | 6 | 22 | M20 | 12 | 9,383 |
250 | 281 | 355 | 405 | 29 | 8 | 26 | M24 | 12 | 13,717 |
300 | 333 | 410 | 460 | 32 | 8 | 26 | M24 | 12 | 18,213 |
350 | 365 | 470 | 520 | 35 | 8 | 26 | M24 | 16 | 27,184 |
400 | 416 | 525 | 580 | 38 | 8 | 30 | M27 | 16 | 34,789 |
450 | 467 | 585 | 640 | 42 | 8 | 30 | M27 | 20 | 44,793 |
500 | 519 | 650 | 715 | 46 | 8 | 33 | M30 | 20 | 62,227 |
600 | 622 | 770 | 840 | 55 | 8 | 36 | M33 | 20 | 98,983 |
700 | 721 | 840 | 910 | 63 | 8 | 36 | M33 | 24 | 107,32 |
800 | 824 | 950 | 1025 | 74 | 8 | 39 | M36 | 24 | 152,44 |
900 | 926 | 1050 | 1125 | 82 | 8 | 39 | M36 | 28 | 184,25 |
1000 | 1030 | 1170 | 1255 | 90 | 8 | 42 | M39 | 28 | 257,09 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN16 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 05 Flange Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 05 Flange
EN 1092-1 TYPE 05 PN6 BLIND FLANGE | |||||||
Diameter | Flange | Screws | Weight (7,85 Kg/dm3) |
||||
k | D | b | d2 | Thread | Bolt holes | KG | |
15 | 55 | 80 | 12 | 11 | M10 | 4 | 0,438 |
20 | 65 | 90 | 14 | 11 | M10 | 4 | 0,657 |
25 | 75 | 100 | 14 | 11 | M10 | 4 | 0,821 |
32 | 90 | 120 | 14 | 14 | M12 | 4 | 1,180 |
40 | 100 | 130 | 14 | 14 | M12 | 4 | 1,390 |
50 | 110 | 140 | 14 | 14 | M12 | 4 | 1,620 |
65 | 130 | 160 | 14 | 14 | M12 | 4 | 2,140 |
80 | 150 | 190 | 16 | 18 | M16 | 4 | 3,430 |
100 | 170 | 210 | 16 | 18 | M16 | 4 | 4,220 |
125 | 200 | 240 | 18 | 18 | M16 | 8 | 6,100 |
150 | 225 | 265 | 18 | 18 | M16 | 8 | 7,510 |
200 | 280 | 320 | 20 | 18 | M16 | 8 | 12,300 |
250 | 335 | 375 | 22 | 18 | M16 | 12 | 18,500 |
300 | 395 | 440 | 22 | 22 | M20 | 12 | 25,500 |
350 | 445 | 490 | 22 | 22 | M20 | 12 | 31,800 |
400 | 495 | 540 | 22 | 22 | M20 | 16 | 38,500 |
450 | 550 | 595 | 24 | 22 | M20 | 16 | 51,200 |
500 | 600 | 645 | 24 | 22 | M20 | 20 | 60,100 |
600 | 705 | 755 | 30 | 26 | M24 | 20 | 103,000 |
700 | 810 | 860 | 40 | 26 | M24 | 24 | 178,000 |
800 | 920 | 975 | 44 | 30 | M27 | 24 | 252,000 |
900 | 1020 | 1075 | 48 | 30 | M27 | 24 | 336,000 |
1000 | 1120 | 1175 | 52 | 30 | M27 | 28 | 435,000 |
1200 | 1340 | 1405 | 60 | 33 | M30 | 32 | 717,000 |
1400 | 1560 | 1630 | 68 | 36 | M33 | 36 | 1.094,000 |
1600 | 1760 | 1830 | 76 | 36 | M33 | 40 | 1.545,000 |
1800 | 1970 | 2045 | 84 | 39 | M36 | 44 | 2.131,000 |
2000 | 2180 | 2265 | 92 | 42 | M39 | 48 | 2.862,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 05 / DN100 / PN6 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 05 PN10 BLIND FLANGE | |||||||
Diameter | Flange | Screws | Weight (7,85 Kg/dm3) |
||||
k | D | b | d2 | Thread | Bolt holes | KG | |
200 | 295 | 340 | 24 | 22 | M20 | 8 | 16,500 |
250 | 350 | 395 | 26 | 22 | M20 | 12 | 24,100 |
300 | 400 | 445 | 26 | 22 | M20 | 12 | 30,800 |
350 | 460 | 505 | 26 | 22 | M20 | 16 | 39,600 |
400 | 515 | 565 | 26 | 26 | M24 | 16 | 49,400 |
450 | 565 | 615 | 28 | 26 | M24 | 20 | 63,000 |
500 | 620 | 670 | 28 | 26 | M24 | 20 | 75,200 |
600 | 725 | 780 | 34 | 30 | M27 | 20 | 124,000 |
700 | 840 | 895 | 38 | 30 | M27 | 24 | 183,000 |
800 | 950 | 1015 | 48 | 33 | M30 | 24 | 297,000 |
900 | 1050 | 1115 | 50 | 33 | M30 | 28 | 374,000 |
1000 | 1160 | 1230 | 54 | 36 | M33 | 28 | 492,000 |
1200 | 1380 | 1455 | 66 | 39 | M36 | 32 | 842,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 05 / DN100 / PN10 / P245GH / HEAT NUMBER |
EN1092-1 TYPE05 PN16 BLIND FLANGE | |||||||
Diameter | Flange | Screws | Weight (7,85 Kg/dm3) |
||||
k | D | b | d2 | Thread | Bolt holes | KG | |
15 | 65 | 95 | 16 | 14 | M12 | 4 | 0,813 |
20 | 75 | 105 | 18 | 14 | M12 | 4 | 1,140 |
25 | 85 | 115 | 18 | 14 | M12 | 4 | 1,380 |
32 | 100 | 140 | 18 | 18 | M16 | 4 | 2,030 |
40 | 110 | 150 | 18 | 18 | M16 | 4 | 2,350 |
50 | 125 | 165 | 18 | 18 | M16 | 4 | 2,880 |
65 | 145 | 185 | 18 | 18 | M16 | 4 | 3,643 |
80 | 160 | 200 | 20 | 18 | M16 | 8 | 4,610 |
100 | 180 | 220 | 20 | 18 | M16 | 8 | 5,650 |
125 | 210 | 250 | 22 | 18 | M16 | 8 | 8,130 |
150 | 240 | 285 | 22 | 22 | M20 | 8 | 10,500 |
200 | 295 | 340 | 24 | 22 | M20 | 12 | 16,200 |
250 | 355 | 405 | 26 | 26 | M24 | 12 | 25,000 |
300 | 410 | 460 | 28 | 26 | M24 | 12 | 35,100 |
350 | 470 | 520 | 30 | 26 | M24 | 16 | 48,000 |
400 | 525 | 580 | 32 | 30 | M27 | 16 | 63,500 |
450 | 585 | 640 | 40 | 30 | M27 | 20 | 96,600 |
500 | 650 | 715 | 44 | 33 | M30 | 20 | 133,000 |
600 | 770 | 840 | 54 | 36 | M33 | 20 | 226,000 |
700 | 840 | 910 | 58 | 36 | M33 | 24 | 285,000 |
800 | 950 | 1025 | 62 | 39 | M36 | 24 | 388,000 |
900 | 1050 | 1125 | 64 | 39 | M36 | 28 | 483,000 |
1000 | 1170 | 1255 | 68 | 42 | M39 | 28 | 640,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 05 / DN100 / PN16 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 11 Flange Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 11 Flange
EN 1092-1 TYPE 11 PN6 WNRF FLANGE | |||||||||||||||
Rated Diameter | Flange | Neck | Raised face | Screws | Weight (7,85 Kg/dm3) |
||||||||||
d1 | k | D | b | h1 | d3 | s | r | h2 | d4 | f | d2 | Thread | Bolt holes | Kg | |
15 | 21,3 | 55 | 80 | 12 | 30 | 30 | 2,00 | 4 | 6 | 40 | 2 | 11 | M10 | 4 | 0,408 |
20 | 26,9 | 65 | 90 | 14 | 32 | 38 | 2,30 | 4 | 6 | 50 | 2 | 11 | M10 | 4 | 0,621 |
25 | 33,7 | 75 | 100 | 14 | 35 | 42 | 2,60 | 4 | 6 | 60 | 2 | 11 | M10 | 4 | 0,762 |
32 | 42,4 | 90 | 120 | 14 | 35 | 55 | 2,60 | 6 | 6 | 70 | 2 | 14 | M12 | 4 | 1,110 |
40 | 48,3 | 100 | 130 | 14 | 38 | 62 | 2,60 | 6 | 7 | 80 | 3 | 14 | M12 | 4 | 1,260 |
50 | 60,3 | 110 | 140 | 14 | 38 | 74 | 2,90 | 6 | 8 | 90 | 3 | 14 | M12 | 4 | 1,430 |
65 | 76,1 | 130 | 160 | 14 | 38 | 88 | 2,90 | 6 | 9 | 110 | 3 | 14 | M12 | 4 | 1,770 |
80 | 88,9 | 150 | 190 | 16 | 42 | 102 | 3,20 | 8 | 10 | 128 | 3 | 18 | M16 | 4 | 2,880 |
100 | 114,3 | 170 | 210 | 16 | 45 | 130 | 3,60 | 8 | 10 | 148 | 3 | 18 | M16 | 4 | 3,410 |
125 | 139,7 | 200 | 240 | 18 | 48 | 155 | 4,00 | 8 | 10 | 178 | 3 | 18 | M16 | 8 | 4,650 |
150 | 168,3 | 225 | 265 | 18 | 48 | 184 | 4,50 | 10 | 12 | 202 | 3 | 18 | M16 | 8 | 5,500 |
200 | 219,1 | 280 | 320 | 20 | 55 | 236 | 6,30 | 10 | 15 | 258 | 3 | 18 | M16 | 8 | 8,600 |
250 | 273,0 | 335 | 375 | 22 | 60 | 290 | 6,30 | 12 | 15 | 312 | 3 | 18 | M16 | 12 | 11,700 |
300 | 323,9 | 395 | 440 | 22 | 62 | 342 | 7,10 | 12 | 15 | 365 | 4 | 22 | M20 | 12 | 15,300 |
350 | 355,6 | 445 | 490 | 22 | 62 | 385 | 7,10 | 12 | 15 | 415 | 4 | 22 | M20 | 12 | 20,300 |
400 | 406,4 | 495 | 540 | 22 | 65 | 438 | 7,10 | 12 | 15 | 465 | 4 | 22 | M20 | 16 | 23,100 |
450 | 457,0 | 550 | 595 | 22 | 65 | 492 | 7,10 | 12 | 15 | 520 | 4 | 22 | M20 | 16 | 27,000 |
500 | 508,0 | 600 | 645 | 24 | 68 | 538 | 7,10 | 12 | 15 | 570 | 4 | 22 | M20 | 20 | 30,800 |
600 | 610,0 | 705 | 755 | 30 | 70 | 640 | 7,10 | 12 | 16 | 670 | 5 | 26 | M24 | 20 | 44,000 |
700 | 711,0 | 810 | 860 | 30 | 76 | 740 | 8,00 | 12 | 16 | 775 | 5 | 26 | M24 | 24 | 53,700 |
800 | 813,0 | 920 | 975 | 30 | 76 | 842 | 8,00 | 12 | 16 | 880 | 5 | 30 | M27 | 24 | 64,400 |
900 | 914,0 | 1020 | 1075 | 34 | 78 | 942 | 8,00 | 12 | 16 | 980 | 5 | 30 | M27 | 24 | 79,200 |
1000 | 1016,0 | 1120 | 1175 | 38 | 82 | 1045 | 8,00 | 16 | 16 | 1080 | 5 | 30 | M27 | 28 | 98,600 |
1200 | 1219,0 | 1340 | 1405 | 42 | 104 | 1248 | 8,80 | 16 | 20 | 1295 | 5 | 33 | M30 | 32 | 152,000 |
1400 | 1422,0 | 1560 | 1630 | 56 | 114 | 1452 | 8,80 | 16 | 20 | 1510 | 5 | 36 | M33 | 36 | 246,000 |
1600 | 1626,0 | 1760 | 1830 | 63 | 119 | 1655 | 10,00 | 16 | 20 | 1710 | 5 | 36 | M33 | 40 | 309,000 |
1800 | 1829,0 | 1970 | 2045 | 69 | 133 | 1855 | 11,00 | 16 | 20 | 1920 | 5 | 39 | M36 | 44 | 400,000 |
2000 | 2032,0 | 2180 | 2265 | 74 | 146 | 2058 | 12,50 | 16 | 25 | 2125 | 5 | 42 | M39 | 48 | 516,000 |
2200 | 2235,0 | 2390 | 2475 | 81 | 154 | 2260 | 14,00 | 18 | 25 | 2335 | 5 | 42 | M39 | 52 | 645,000 |
2400 | 2438,0 | 2600 | 2685 | 87 | 168 | 2462 | 15,00 | 18 | 25 | 2545 | 5 | 42 | M39 | 56 | 786,000 |
2600 | 2620,0 | 2810 | 2905 | 91 | 175 | 2665 | 16,00 | 18 | 25 | 2750 | 5 | 48 | M45 | 60 | 1.021,000 |
2800 | 2820,0 | 3020 | 3115 | 101 | 188 | 2865 | 17,00 | 18 | 30 | 2960 | 5 | 48 | M45 | 64 | 1.256,000 |
3000 | 3020,0 | 3220 | 3315 | 102 | 192 | 3068 | 20,00 | 18 | 30 | 3160 | 5 | 48 | M45 | 68 | 1.404,000 |
3200 | 3220,0 | 3430 | 3525 | 106 | 202 | 3272 | 20,00 | 20 | 30 | 3370 | 5 | 48 | M45 | 72 | 1.617,000 |
3400 | 3420,0 | 3640 | 3735 | 110 | 214 | 3475 | 22,00 | 20 | 35 | 3580 | 5 | 48 | M45 | 76 | 1.877,000 |
3600 | 3620,0 | 3860 | 3970 | 124 | 229 | 3678 | 22,00 | 20 | 35 | 3790 | 5 | 56 | M52 | 80 | 2.366,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 11 B1 / DN100 / PN6 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 11 PN10 WNRF FLANGE | |||||||||||||||
Rated Diameter | Flange | Neck | Raised face | Screws | Weight (7,85 Kg/dm3) |
||||||||||
d1 | k | D | b | h1 | d3 | s | r | h2 | d4 | f | d2 | Thread | Bolt holes | Kg | |
200 | 219,1 | 295 | 340 | 24 | 62 | 234 | 6,30 | 10 | 16 | 268 | 3 | 22 | M20 | 8 | 11,600 |
250 | 273,0 | 350 | 395 | 26 | 68 | 292 | 6,30 | 12 | 16 | 320 | 3 | 22 | M20 | 12 | 15,800 |
300 | 323,9 | 400 | 445 | 26 | 68 | 342 | 7,10 | 12 | 16 | 370 | 4 | 22 | M20 | 12 | 18,300 |
350 | 355,6 | 460 | 505 | 26 | 68 | 385 | 7,10 | 12 | 16 | 430 | 4 | 22 | M20 | 16 | 25,300 |
400 | 406,4 | 515 | 565 | 26 | 72 | 440 | 7,10 | 12 | 16 | 482 | 4 | 26 | M24 | 16 | 30,600 |
450 | 457,0 | 565 | 615 | 28 | 72 | 488 | 7,10 | 12 | 16 | 532 | 4 | 26 | M24 | 20 | 35,100 |
500 | 508,0 | 620 | 670 | 28 | 75 | 542 | 7,10 | 12 | 16 | 585 | 4 | 26 | M24 | 20 | 40,500 |
600 | 610,0 | 725 | 780 | 30 | 82 | 642 | 8,00 | 12 | 18 | 685 | 5 | 30 | M27 | 20 | 52,900 |
700 | 711,0 | 840 | 895 | 35 | 85 | 746 | 8,80 | 12 | 18 | 800 | 5 | 30 | M27 | 24 | 75,800 |
800 | 813,0 | 950 | 1015 | 38 | 96 | 850 | 8,80 | 12 | 18 | 905 | 5 | 33 | M30 | 24 | 102,000 |
900 | 914,0 | 1050 | 1115 | 38 | 99 | 950 | 12,50 | 12 | 20 | 1005 | 5 | 33 | M30 | 28 | 121,000 |
1000 | 1016,0 | 1160 | 1230 | 44 | 105 | 1052 | 12,50 | 16 | 20 | 1110 | 5 | 36 | M33 | 28 | 161,000 |
1200 | 1219,0 | 1380 | 1455 | 55 | 132 | 1256 | 12,50 | 16 | 25 | 1330 | 5 | 39 | M36 | 32 | 258,000 |
1400 | 1422,0 | 1590 | 1675 | 65 | 143 | 1460 | 14,20 | 16 | 25 | 1535 | 5 | 42 | M39 | 36 | 371,000 |
1600 | 1626,0 | 1820 | 1915 | 75 | 159 | 1666 | 16,00 | 16 | 25 | 1760 | 5 | 48 | M45 | 40 | 547,000 |
1800 | 1829,0 | 2020 | 2115 | 85 | 175 | 1868 | 17,50 | 16 | 30 | 1960 | 5 | 48 | M45 | 44 | 691,000 |
2000 | 2032,0 | 2230 | 2325 | 90 | 186 | 2072 | 17,50 | 16 | 30 | 2170 | 5 | 48 | M45 | 48 | 830,000 |
2200 | 2235,0 | 2440 | 2550 | 100 | 202 | 2275 | 20,00 | 18 | 35 | 2370 | 5 | 56 | M52 | 52 | 1.073,000 |
2400 | 2438,0 | 2650 | 2760 | 110 | 218 | 2478 | 22,20 | 18 | 35 | 2570 | 5 | 56 | M52 | 56 | 1.329,000 |
2600 | 2620,0 | 2850 | 2960 | 110 | 224 | 2680 | 25,00 | 18 | 40 | 2780 | 5 | 56 | M52 | 60 | 1.574,000 |
2800 | 2820,0 | 3070 | 3180 | 124 | 244 | 2882 | 25,00 | 18 | 40 | 3000 | 5 | 56 | M52 | 64 | 1.987,000 |
3000 | 3020,0 | 3290 | 3405 | 132 | 257 | 3085 | 32,00 | 18 | 45 | 3210 | 5 | 62 | M56 | 68 | 2.476,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 11 B1 / DN100 / PN10 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 13 Flange Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 13 Flange
EN 1092-1 TYPE 13 PN6 THREADED FLANGE | |||||||||||||
Rated Diameter | Flange | Neck | Raised face | Screws | Weight |
||||||||
d1 | Thread | k | D | b | h1 | d3 | d4 | f | d2 | Thread | Bolt holes | KG | |
15 | 21,3 | R 1/2" | 55 | 80 | 12 | 20 | 30,0 | 40,0 | 2,0 | 11 | M10 | 4 | 0,373 |
20 | 26,9 | R 3/4" | 65 | 90 | 14 | 24 | 40,0 | 50,0 | 2,0 | 11 | M10 | 4 | 0,584 |
25 | 33,7 | R 1" | 75 | 100 | 14 | 24 | 50,0 | 60,0 | 2,0 | 11 | M10 | 4 | 0,729 |
32 | 42,4 | R 1-1/4" | 90 | 120 | 14 | 26 | 60,0 | 70,0 | 2,0 | 14 | M12 | 4 | 1,040 |
40 | 48,3 | R 1-1/2" | 100 | 130 | 14 | 26 | 70,0 | 80,0 | 3,0 | 14 | M12 | 4 | 1,200 |
50 | 60,3 | R 2" | 110 | 140 | 14 | 28 | 80,0 | 90,0 | 3,0 | 14 | M12 | 4 | 1,340 |
65 | 76,1 | R 2-1/2" | 130 | 160 | 14 | 32 | 100,0 | 110,0 | 3,0 | 14 | M12 | 4 | 1,830 |
80 | 88,9 | R 3" | 150 | 190 | 16 | 34 | 110,0 | 128,0 | 3,0 | 18 | M16 | 4 | 2,750 |
100 | 114,3 | R 4" | 170 | 210 | 16 | 40 | 130,0 | 148,0 | 3,0 | 18 | M16 | 4 | 3,010 |
125 | 139,7 | R 5" | 200 | 240 | 18 | 44 | 160,0 | 178,0 | 3,0 | 18 | M16 | 8 | 4,300 |
150 | 168,3 | R 6" | 225 | 265 | 18 | 44 | 185,0 | 202,0 | 3,0 | 18 | M16 | 8 | 4,630 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 13 / DN100 / PN6 / P245GH / HEAT NUMBER |
EN 1092-1 TYPE 13 PN16 THREADED FLANGE | |||||||||||||
Rated Diameter | Flange | Neck | Raised face | Screws | Weight |
||||||||
d1 | Thread | k | D | b | h1 | d3 | d4 | f | d2 | Thread | Bolt holes | KG | |
15 | 21,3 | R 1/2" | 65 | 95 | 16 | 22 | 35,0 | 45,0 | 2,0 | 14 | M12 | 4 | 0,722 |
20 | 26,9 | R 3/4" | 75 | 105 | 18 | 26 | 45,0 | 58,0 | 2,0 | 14 | M12 | 4 | 1,040 |
25 | 33,7 | R 1" | 85 | 115 | 18 | 28 | 52,0 | 68,0 | 2,0 | 14 | M12 | 4 | 1,250 |
32 | 42,4 | R 1-1/4" | 100 | 140 | 18 | 30 | 60,0 | 78,0 | 2,0 | 18 | M16 | 4 | 1,810 |
40 | 48,3 | R 1-1/2" | 110 | 150 | 18 | 32 | 70,0 | 88,0 | 3,0 | 18 | M16 | 4 | 2,060 |
50 | 60,3 | R 2" | 125 | 165 | 18 | 28 | 84,0 | 102,0 | 3,0 | 18 | M16 | 4 | 2,390 |
65 | 76,1 | R 2-1/2" | 145 | 185 | 18 | 32 | 104,0 | 122,0 | 3,0 | 18 | M16 | 4 | 2,970 |
80 | 88,9 | R 3" | 160 | 200 | 20 | 34 | 118,0 | 138,0 | 3,0 | 18 | M16 | 8 | 3,780 |
100 | 114,3 | R 4" | 180 | 220 | 20 | 40 | 140,0 | 158,0 | 3,0 | 18 | M16 | 8 | 4,380 |
125 | 139,7 | R 5" | 210 | 250 | 22 | 44 | 168,0 | 188,0 | 3,0 | 18 | M16 | 8 | 6,070 |
150 | 168,3 | R 6" | 240 | 285 | 22 | 44 | 195,0 | 212,0 | 3,0 | 22 | M20 | 8 | 7,240 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 13 / DN100 / PN16 / P245GH / HEAT NUMBER |
