DIN FLANGE PN6-PN40
We are involved in offering a quality range of Industrial Flanges, which is high in durability and can withstand extreme conditions. These industrial flanges are available in different grades, class, and other technical specifications as per the client’s requirements. Our range is commonly used to connect other threaded components in low pressure and non-critical applications.
Dimensions

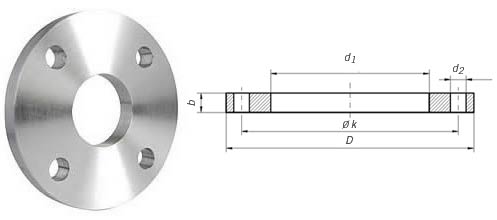

Plate Flange

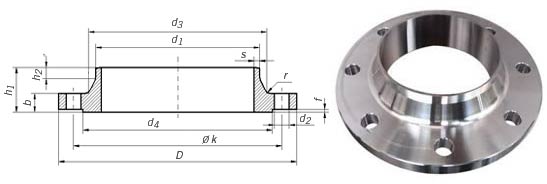

Welding Neck Flange

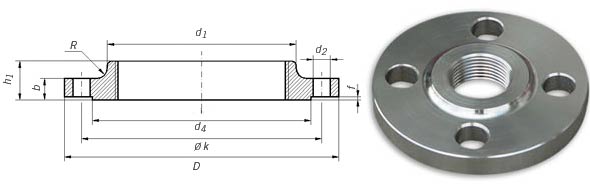

Threaded Flange

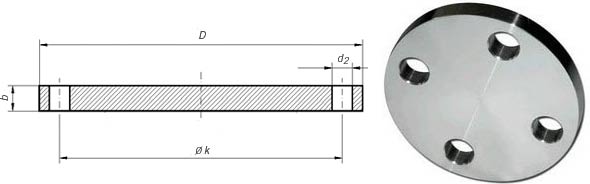

Blind Flange

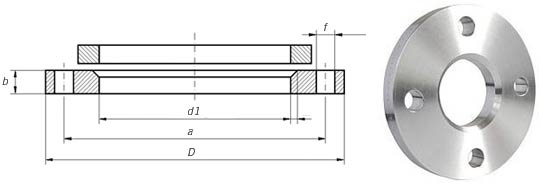

Lapped/Loose Flange
Dimensions & Approximate Masses of DIN 2573 PN6 Flange
Germany standard flange DIN 2573 for soldering or welding Nominall Pressure 6 |
|||||||||||
Flansche, glatt zum löten oder schweißen DIN 2573 Nenndruck 6 |
|||||||||||
Brides plates a souder DIN 2573 pression nominale 6 |
|||||||||||
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
||||||||
Rated Diameter |
d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
ISO Series 1 | DIN Series 2 | ||||||||||
15 | - | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
21,3 | - | 22 | |||||||||
20 | - | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
26,9 | - | 27,6 | |||||||||
25 | - | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
33,7 | - | 34,4 | |||||||||
32 | - | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
42,4 | - | 43,1 | |||||||||
40 | - | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
48,3 | - | 49 | |||||||||
50 | - | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
60,3 | - | 61,1 | |||||||||
65 | 76,1 | - | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
80 | 88,9 | - | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
100 | - | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
114,3 | - | 115,9 | |||||||||
125 | - | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
139,7 | - | 141,6 | |||||||||
150 | - | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
168,3 | - | 170,5 | |||||||||
200 | 219,1 | - | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
250 | - | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
273 | - | 276,2 | |||||||||
300 | 323,9 | - | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
350 | 355,6 | - | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
- | 368 | 372,2 | |||||||||
400 | 406,4 | - | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
- | 419 | 423,7 | |||||||||
(450)* | 457 | - | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
500 | 508 | - | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
DIN 2631 PN6 WELDING NECK FLANGE RF
Dimensions & Approx Masses of DIN 2631 PN6 WNRF Flange
Germany standard flange DIN 2631 welding neck flanges; nominal pressure 6 |
||||||||||||||||
Vorschweißflansche DIN 2631 Nenndruck 6 |
||||||||||||||||
Brides à souder à collerette DIN 2631: pression nominale 6 |
||||||||||||||||
Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
(7,85 Kg/dm3) | ||||||||||||||||
Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
Diameter | ISO Series | DIN Series | ||||||||||||||
15 | - | 20 | 80 | 12 | 55 | 30 | 28 | 2 | 4 | 6 | 40 | 2 | 4 | M 10 | 11 | 0,392 |
21,3 | - | 30 | ||||||||||||||
20 | - | 25 | 90 | 14 | 65 | 32 | 35 | 2,3 | 4 | 6 | 50 | 2 | 4 | M 10 | 11 | 0,592 |
26,9 | - | 38 | ||||||||||||||
25 | - | 30 | 100 | 14 | 75 | 35 | 40 | 2,6 | 4 | 6 | 60 | 2 | 4 | M 10 | 11 | 0,747 |
33,7 | - | 42 | ||||||||||||||
32 | - | 38 | 120 | 14 | 90 | 35 | 50 | 2,6 | 6 | 6 | 70 | 2 | 4 | M 12 | 14 | 1,05 |
42,4 | - | 55 | ||||||||||||||
40 | - | 44,5 | 130 | 14 | 100 | 38 | 58 | 2,6 | 6 | 7 | 80 | 3 | 4 | M 12 | 14 | 1,18 |
48,3 | - | 62 | ||||||||||||||
50 | - | 57 | 140 | 14 | 110 | 38 | 70 | 2,9 | 6 | 8 | 90 | 3 | 4 | M 12 | 14 | 1,34 |
60,3 | - | 74 | ||||||||||||||
65 | 76,1 | - | 160 | 14 | 130 | 38 | 88 | 2,9 | 6 | 9 | 110 | 3 | 4 | M 12 | 14 | 1,67 |
80 | 88,9 | - | 190 | 16 | 150 | 42 | 102 | 3,2 | 8 | 10 | 128 | 3 | 4 | M 16 | 18 | 2,71 |
100 | - | 108 | 210 | 16 | 170 | 45 | 122 | 3,6 | 8 | 10 | 148 | 3 | 4 | M 16 | 18 | 3,24 |
114,3 | 130 | |||||||||||||||
125 | - | 133 | 240 | 18 | 200 | 48 | 148 | 4 | 8 | 10 | 178 | 3 | 8 | M 16 | 18 | 4,49 |
139,7 | - | 155 | ||||||||||||||
150 | - | 159 | 265 | 18 | 225 | 48 | 172 | 4,5 | 10 | 12 | 202 | 3 | 8 | M 16 | 18 | 5,15 |
168,3 | - | 184 | ||||||||||||||
200 | 219,1 | - | 320 | 20 | 280 | 55 | 236 | 5,9 | 10 | 15 | 258 | 3 | 8 | M 16 | 18 | 7,78 |
250 | - | 267 | 375 | 22 | 335 | 60 | 282 | 6,3 | 12 | 15 | 312 | 3 | 12 | M 16 | 18 | 10,8 |
273 | - | 290 | ||||||||||||||
300 | 323,9 | - | 440 | 22 | 395 | 62 | 342 | 7,1 | 15 | 15 | 365 | 4 | 12 | M 20 | 22 | 14 |
350 | 355,6 | - | 490 | 22 | 445 | 62 | 385 | 7,1 | 12 | 15 | 415 | 4 | 12 | M 20 | 22 | 18,5 |
- | 368 | 16,7 | ||||||||||||||
400 | 406,4 | - | 540 | 22 | 495 | 65 | 438 | 7,1 | 12 | 15 | 465 | 4 | 16 | M 20 | 22 | 21,2 |
- | 419 | 19 | ||||||||||||||
500 | 508 | - | 645 | 24 | 600 | 68 | 538 | 7,1 | 12 | 15 | 570 | 4 | 20 | M 20 | 22 | 28,6 |
600 | 610 | - | 755 | 24 | 705 | 70 | 640 | 7,1 | 12 | 16 | 670 | 5 | 20 | M 24 | 26 | 31,5 |
700 | 711 | - | 860 | 24 | 810 | 70 | 740 | 7,1 | 12 | 16 | 775 | 5 | 24 | M 24 | 26 | 37,4 |
800 | 813 | - | 975 | 24 | 920 | 70 | 842 | 7,1 | 12 | 16 | 880 | 5 | 24 | M 27 | 30 | 46,1 |
900 | 914 | - | 1075 | 26 | 1020 | 70 | 942 | 7,1 | 12 | 16 | 980 | 5 | 24 | M 27 | 30 | 55,6 |
1000 | 1016 | - | 1175 | 26 | 1120 | 70 | 1045 | 7,1 | 16 | 16 | 1080 | 5 | 28 | M 27 | 30 | 61,9 |
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
DIN 2565 PN6/DIN 2566 PN16 THREADED FLANGE
Dimensions & Masses of DIN 2565/DIN 2566 Threaded Flange
DIN 2565 PN 6 THREADED FLANGE SPECIFICATION | |||||||||||||
Rated Diameter |
Flange | Neck | Raised face | Screws | Weight (7,85 Kg/dm3) |
||||||||
d1 | Thread | D | b | k | h1 | d3 | d4 | f | Holes | Thread | d2 | Kg | |
15 | 21,3 | R 1/2 | 80 | 12 | 55 | 20 | 30 | 40 | 2 | 4 | M 10 | 11 | 0,373 |
20 | 26,9 | R 3/4 | 90 | 14 | 65 | 24 | 40 | 50 | 2 | 4 | M 10 | 11 | 0,59 |
25 | 33,7 | R 1 | 100 | 14 | 75 | 24 | 50 | 60 | 2 | 4 | M 10 | 11 | 0,743 |
32 | 42,4 | R 1 1/4 | 120 | 14 | 90 | 26 | 60 | 70 | 2 | 4 | M 12 | 14 | 1,05 |
40 | 48,3 | R 1 1/2 | 130 | 14 | 100 | 26 | 70 | 80 | 3 | 4 | M 12 | 14 | 1,2 |
50 | 60,3 | R 2 | 140 | 14 | 110 | 28 | 80 | 90 | 3 | 4 | M 12 | 14 | 1,37 |
65 | 76,1 | R 2 1/2 | 160 | 14 | 130 | 32 | 100 | 110 | 3 | 4 | M 12 | 14 | 1,92 |
80 | 88,9 | R 3 | 190 | 16 | 150 | 34 | 110 | 128 | 3 | 4 | M 16 | 18 | 2,82 |
100 | 114,3 | R 4 | 210 | 16 | 170 | 38 | 130 | 148 | 3 | 4 | M 16 | 18 | 3,19 |
125 | 139,7 | R 5 | 240 | 18 | 200 | 40 | 160 | 178 | 3 | 8 | M 16 | 18 | 4,47 |
150 | 165,1 | R 6 | 265 | 18 | 225 | 44 | 185 | 202 | 3 | 8 | M 16 | 18 | 5,3 |
DIN 2566 PN16 THREADED FLANGE SPECIFICATION | |||||||||||||
Rated Diameter |
Flange | Neck | Raised face | Screws | Weight (7,85 Kg/dm3) |
||||||||
d1 | Thread | D | b | k | h1 | d3 | d4 | f | Holes | Thread | d2 | Kg | |
15 | 21,3 | R 1/2 | 95 | 14 | 65 | 20 | 35 | 45 | 2 | 4 | M 12 | 14 | 0,613 |
20 | 26,9 | R 3/4 | 105 | 16 | 75 | 24 | 45 | 58 | 2 | 4 | M 12 | 14 | 0,91 |
25 | 33,7 | R 1 | 115 | 16 | 85 | 24 | 52 | 68 | 2 | 4 | M 12 | 14 | 1,1 |
32 | 42,4 | R 1 1/4 | 140 | 16 | 100 | 26 | 60 | 78 | 2 | 4 | M 16 | 18 | 1,6 |
40 | 48,3 | R 1 1/2 | 150 | 16 | 110 | 26 | 70 | 88 | 3 | 4 | M 16 | 18 | 1,78 |
50 | 60,3 | R 2 | 165 | 18 | 125 | 28 | 85 | 102 | 3 | 4 | M 16 | 18 | 2,43 |
65 | 76,1 | R 2 1/2 | 185 | 18 | 145 | 32 | 105 | 122 | 3 | 4 | M 16 | 18 | 3,18 |
80 | 88,9 | R 3 | 200 | 20 | 160 | 34 | 118 | 138 | 3 | 8 | M 16 | 18 | 4,12 |
100 | 114,3 | R 4 | 220 | 20 | 180 | 38 | 140 | 158 | 3 | 8 | M 16 | 18 | 4,47 |
125 | 139,7 | R 5 | 250 | 22 | 210 | 40 | 168 | 188 | 3 | 8 | M 16 | 18 | 6,13 |
150 | 165,1 | R 6 | 285 | 22 | 240 | 44 | 195 | 212 | 3 | 8 | M 20 | 22 | 7,92 |
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
DIN 2527 BLIND FLANGE PN6, PN10, PN16, PN25, PN40
Dimensions & Approximate Masses of DIN 2527 Blind Flange
Germany standard flange DIN 2527 Blind flange Nominal Pressure 6 to 100 |
|||||||
Blindflansche Nenndruck 6 bis 100 |
|||||||
Brides plaines, pressions nominales 6 à 100 |
|||||||
DIN 2527 PN6 BLIND FLANGE | |||||||
Rated Diameter |
Flange | Screws | Weight (7,85 Kg/dm3) |
||||
D | b | k | Number | Thread | d2 | Shape B | |
Kg | |||||||
15 | 80 | 12 | 55 | 4 | M 10 | 11 | 0.44 |
20 | 90 | 14 | 65 | 0.66 | |||
25 | 100 | 14 | 75 | 0.83 | |||
32 | 120 | 14 | 90 | M 12 | 14 | 1.18 | |
40 | 130 | 14 | 100 | 1.39 | |||
50 | 140 | 14 | 110 | 1.63 | |||
65 | 160 | 14 | 130 | 2.15 | |||
80 | 190 | 16 | 150 | M 16 | 18 | 3.44 | |
100 | 210 | 16 | 170 | 4.22 | |||
125 | 240 | 18 | 200 | 8 | 6.11 | ||
150 | 265 | 18 | 225 | 7.51 | |||
200 | 320 | 20 | 280 | 12.31 | |||
250 | 375 | 22 | 335 | 12 | 18.54 | ||
300 | 440 | 22 | 395 | M 20 | 22 | 25.46 | |
350 | 490 | 22 | 445 | 31.77 | |||
400 | 540 | 22 | 495 | 16 | 38.49 | ||
500 | 645 | 24 | 600 | 20 | 60.10 |
DIN 2527 PN10 BLIND FLANGE | |||||||
Rated Diameter |
Flange | Screws | Weight (7,85 Kg/dm3) |
||||
D | b | k | Number | Thread | d2 | Shape B | |
Kg | |||||||
15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
20 | 105 | 16 | 75 | 1,01 | |||
25 | 115 | 16 | 85 | 1,23 | |||
32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
40 | 150 | 16 | 110 | 2,09 | |||
50 | 165 | 18 | 125 | 2,88 | |||
65 | 185 | 18 | 145 | 3,66 | |||
80 | 200 | 20 | 160 | 4,77 | |||
100 | 220 | 20 | 180 | 8 | 5,65 | ||
125 | 250 | 22 | 210 | 8,42 | |||
150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
200 | 340 | 24 | 295 | 16,5 | |||
250 | 395 | 26 | 350 | 12 | 24 | ||
300 | 445 | 26 | 400 | 30,9 | |||
350 | 505 | 26 | 460 | 16 | 40,6 | ||
400 | 565 | 26 | 515 | M 24 | 26 | 49,4 | |
500 | 670 | 28 | 620 | 20 | 75 |
DIN 2527 PN16 BLIND FLANGE | |||||||
Rated Diameter |
Flange | Screws | Weight (7,85 Kg/dm3) |
||||
D | b | k | Number | Thread | d2 | Shape B | |
Kg | |||||||
15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
20 | 105 | 16 | 75 | 1,01 | |||
25 | 115 | 16 | 85 | 1,23 | |||
32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
40 | 150 | 16 | 110 | 2,09 | |||
50 | 165 | 18 | 125 | 2,88 | |||
65 | 185 | 18 | 145 | 3,66 | |||
80 | 200 | 20 | 160 | 8 | 4,77 | ||
100 | 220 | 20 | 180 | 5,65 | |||
125 | 250 | 22 | 210 | 8,42 | |||
150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
200 | 340 | 24 | 295 | 12 | 16,1 | ||
250 | 405 | 26 | 355 | M 24 | 26 | 24,9 | |
300 | 460 | 28 | 410 | 35,1 | |||
350 | 520 | 30 | 470 | 16 | 47,8 | ||
400 | 580 | 32 | 525 | M 27 | 30 | 63,5 | |
500 | 715 | 36 | 650 | 20 | M 30 | 33 | 102 |
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
DIN 2642 PN10 LOOSE FLANGE
Dimensions & Approximate Masses of DIN 2642 PN10 Flange
Germany standard flange DIN 2642 lapped flange; nominal pressure 10 |
|||||||||||||
Lose Flansche Vorschweißbördel Glatte Bunde DIN 2642 Nenndruck 10 |
|||||||||||||
Brides tournantes: pression nominale 10 |
|||||||||||||
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
||||||||||
Rated Diameter |
d1 | D | d6 | b | k | e | Holes | Thread | d2 | Kg | |||
ISO Series 1 |
DIN Series 2 |
||||||||||||
15 | - | 20 | 95 | 22 | 14 | 65 | 3 | 4 | M 12 | 14 | 0,689 | ||
21,3 | - | 24 | |||||||||||
20 | - | 25 | 105 | 28 | 14 | 75 | 3 | 4 | M 12 | 14 | 0,806 | ||
26,9 | - | 30 | |||||||||||
25 | - | 30 | 115 | 33 | 16 | 85 | 4 | 4 | M 12 | 14 | 1,11 | ||
33,7 | - | 36 | |||||||||||
32 | - | 38 | 140 | 42 | 16 | 100 | 4 | 4 | M 16 | 18 | 1,64 | ||
42,4 | - | 46 | |||||||||||
40 | - | 44,5 | 150 | 50 | 16 | 110 | 4 | 4 | M 16 | 18 | 1,86 | ||
48,3 | - | 54 | |||||||||||
50 | - | 57 | 165 | 62 | 16 | 125 | 5 | 4 | M 16 | 18 | 2,2 | ||
60,3 | - | 65 | |||||||||||
65 | 76,1 | - | 185 | 81 | 16 | 145 | 5 | 4 | M 16 | 18 | 2,62 | ||
80 | 88,9 | - | 200 | 94 | 18 | 160 | 5 | 8 | M 16 | 18 | 3,32 | ||
100 | - | 108 | 220 | 113 | 18 | 180 | 5 | 8 | M 16 | 18 | 3,67 | ||
114,3 | - | 119 | |||||||||||
125 | - | 133 | 250 | 138 | 18 | 210 | 5 | 8 | M 16 | 18 | 4,54 | ||
139,7 | - | 145 | |||||||||||
150 | - | 159 | 285 | 164 | 18 | 240 | 5 | 8 | M 20 | 22 | 5,6 | ||
168,3 | - | 173 | |||||||||||
200 | 219,1 | - | 340 | 225 | 20 | 295 | 5 | 8 | M 20 | 22 | 7,46 | ||
250 | - | 267 | 395 | 273 | 22 | 350 | 5 | 12 | M 20 | 22 | 10,3 | ||
273 | - | 279 | |||||||||||
300 | 323,9 | - | 445 | 329 | 26 | 400 | 5 | 12 | M 20 | 22 | 14 | ||
350 | 355,6 | - | 505 | 362 | 28 | 460 | 6 | 16 | M 20 | 22 | 18,5 | ||
- | 368 | 374 | |||||||||||
400 | 406,4 | - | 565 | 413 | 32 | 515 | 6 | 16 | M 24 | 26 | 25 | ||
- | 419 | 426 | |||||||||||
(450) | 457 | - | 615 | 467 | 38 | 565 | 6 | 20 | M 24 | 26 | 30,6 | ||
500 | 508 | - | 670 | 517 | 38 | 620 | 6 | 20 | M 24 | 26 | 37 | ||
600 | 610 | - | 780 | 618 | 44 | 725 | 7 | 20 | M 27 | 30 | 56,3 | ||
700 | 711 | - | 895 | 721 | 50 | 840 | 7 | 24 | M 27 | 30 | 80,4 | ||
800 | 813 | - | 1015 | 824 | 56 | 950 | 7 | 24 | M 30 | 33 | 113,2 |
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696.
