FLANGES

JIS B 2220 FLANGE

We are involved in offering a quality range of Industrial Flanges, which is high in durability and can withstand extreme conditions. These industrial flanges are available in different grades, class, and other technical specifications as per the client’s requirements. Our range is commonly used to connect other threaded components in low pressure and non-critical applications.

Dimensions

> JIS B2220 FLANGE 5KG
> JIS B2220 FLANGE 10KG
> JIS B2220 FLANGE 16KG
> JIS B2220 FLANGE 20KG

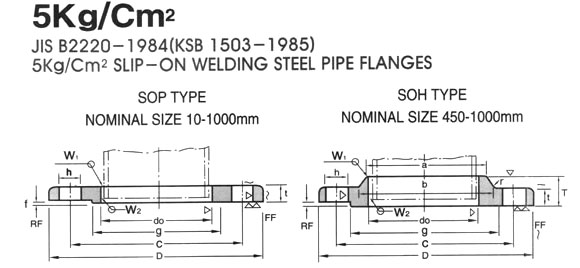

JIS B2220 FLANGE 5KG Dimensions

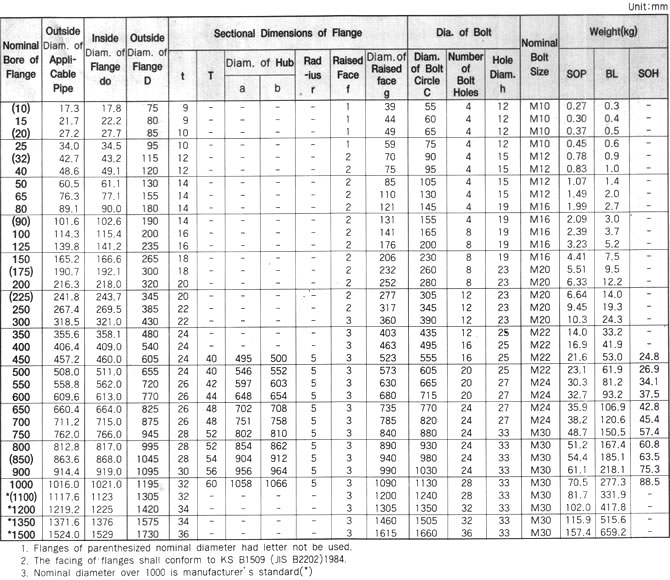

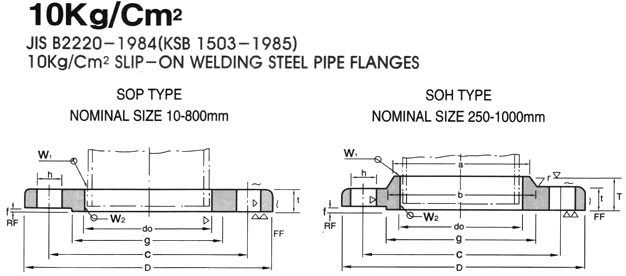

JIS B2220 FLANGE 10KG Dimensions

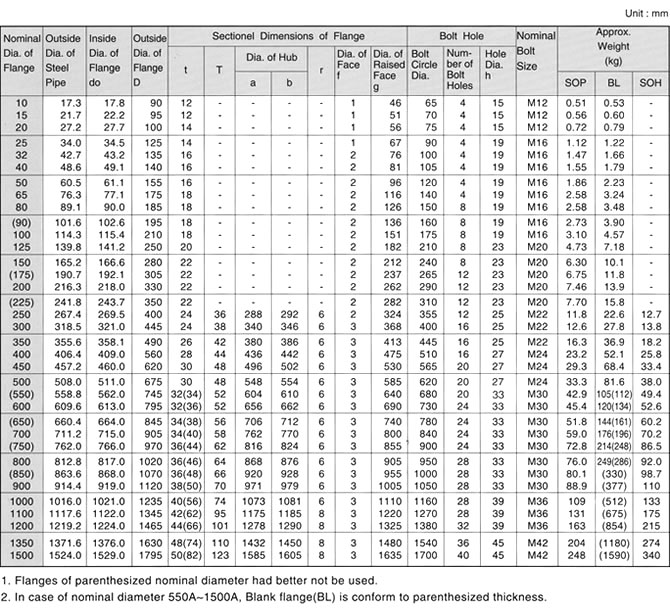

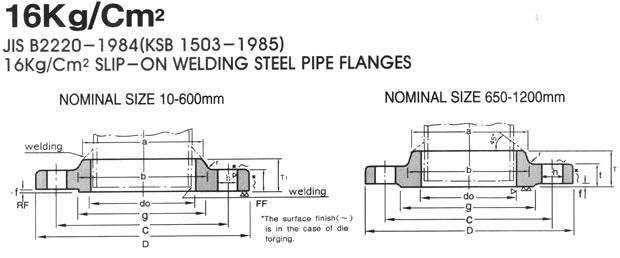

JIS B2220 FLANGE 16KG Dimensions

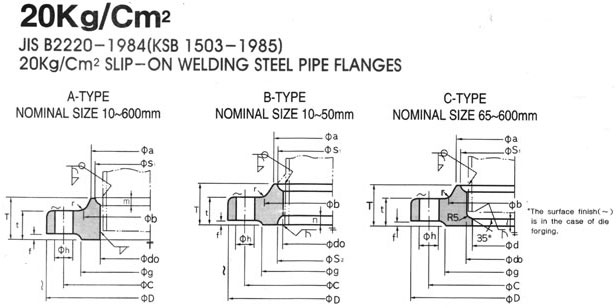

JIS B2220 FLANGE 20KG Dimensions

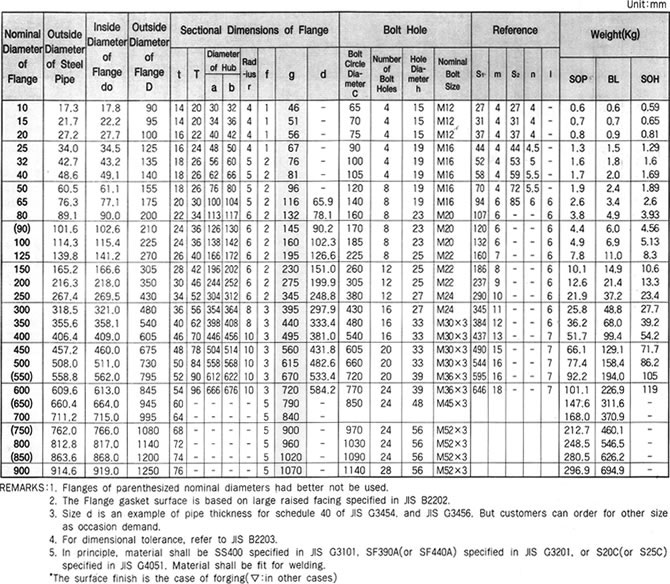

Dimensions & Masses of 20Kg Flange PL/HUB/BLIND
