FLANGES

BS 4504 FLANGE PN6-PN40

We are involved in offering a quality range of Industrial Flanges, which is high in durability and can withstand extreme conditions. These industrial flanges are available in different grades, class, and other technical specifications as per the client’s requirements. Our range is commonly used to connect other threaded components in low pressure and non-critical applications.

Dimensions

> BS 4504 Plate Flange
> BS 4504 Welding Neck Flange
> BS 4504 Threaded Flange
> BS 4504 Blind Flange

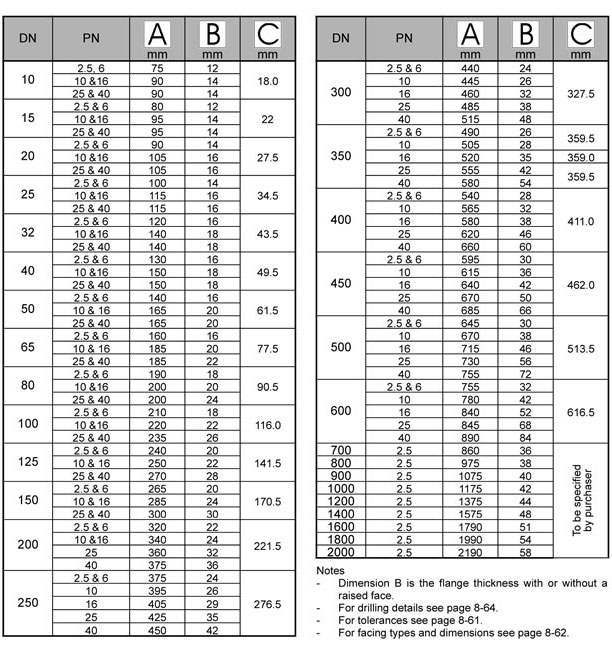

BS 4504 Plate Flange Dimensions

BS 4504 PLATE FLANGE PN6, PN10, PN16, PN25, PN40

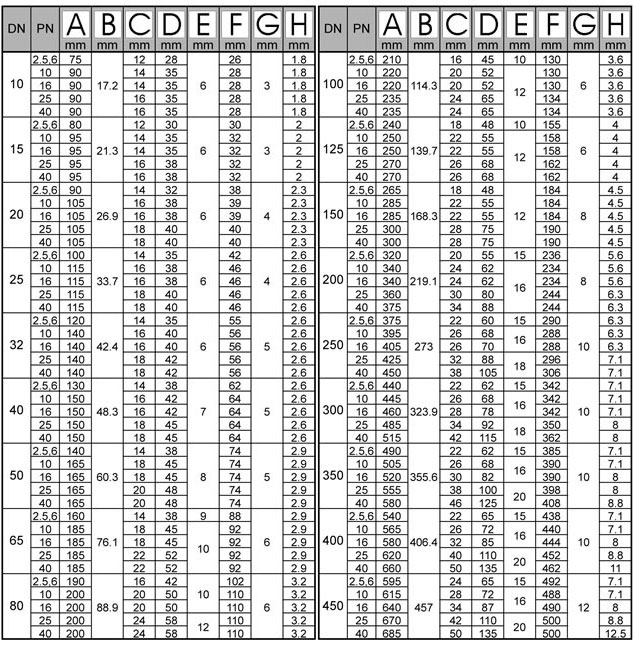

BS 4504 Welding Neck Flange Dimensions

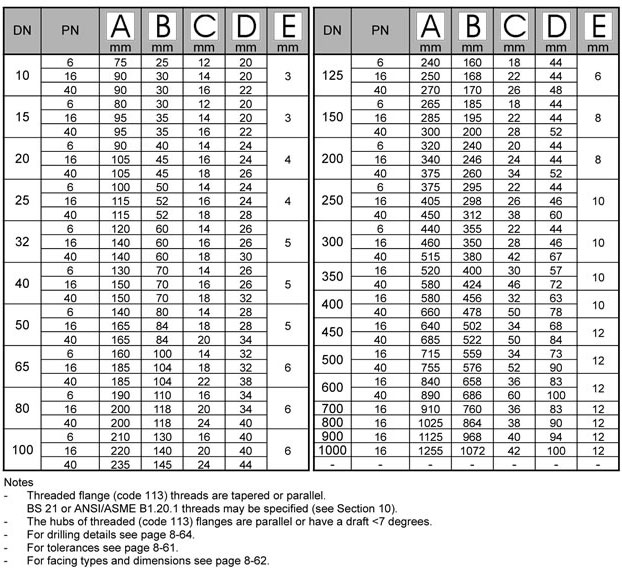

BS 4504 Threaded Flange Dimensions



BS 4504 Blind Flange Dimensions
