Flanges

THREADED FITTINGS

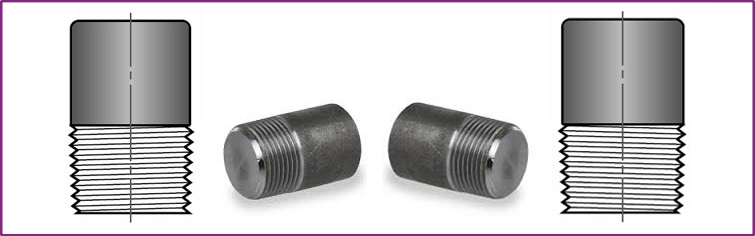

ROUND HEAD PLUG

Fabricated using stainless steel, our range of threaded fittings is one of the most demanded items of our entire range. Suitable for different industrial projects, these adroitly developed threaded pipe fittings are stringently checked for their durability and strength. These are also offered in accordance with the national and international standard & specifications.

Size Class Range Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet ANSI B 16.11 ASTM A 182



Nickel Alloy Round Head Plug

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel Round Head Plug

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Stainless Steel Round Head Plug

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel Round Head Plug

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Round Head Plug

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Round Head Plug

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
Round Head Plug Size : 1/2” NB TO 24” NB.

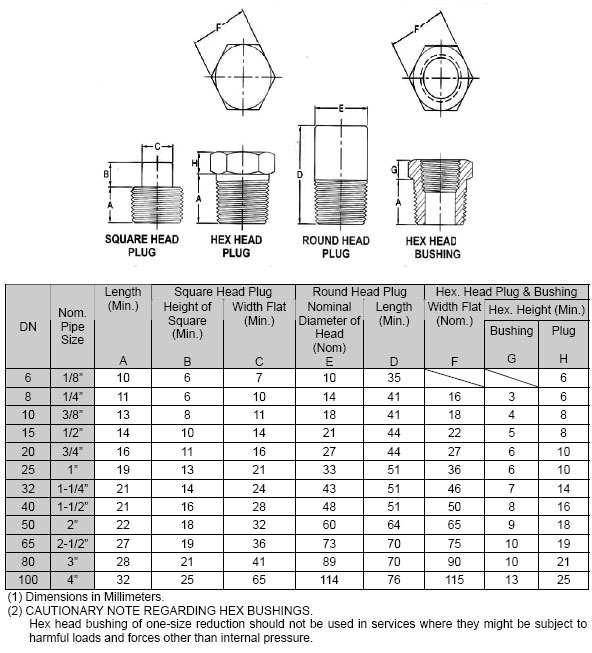

Dimensions

ASME B16.11-2009 (Revision of ASME B16.11-2005)
