Fabricated using stainless steel, our range of threaded fittings is one of the most demanded items of our entire range. Suitable for different industrial projects, these adroitly developed threaded pipe fittings are stringently checked for their durability and strength. These are also offered in accordance with the national and international standard & specifications.
Size | Class | Range | Dimension | Specification |
1/4" to 4" | 2000, 3000, 6000, 9000 | Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union | ANSI B 16.11 | ASTM A 182 |
Size | 1/4" to 4" class 2000 threaded 1/8" to 4" class 3000 and 6000 threaded 1/8" to 4" class 3000 and 6000 socket weld 1/2" to 2" class 9000 socket weld |
Pattern |
Weld |
Seamless |
Nominal size |
1/2”-48” (DN15-DN1200) |
1/2”-20” (DN15-DN500) |
Wall thickness |
2~100mm |
2~50mm |
Bend radius |
SCH5S-SCH160 ,XXS |
SCH5-SCH160 |
Type |
stright cross reducing cross |
stright cross reducing cross |

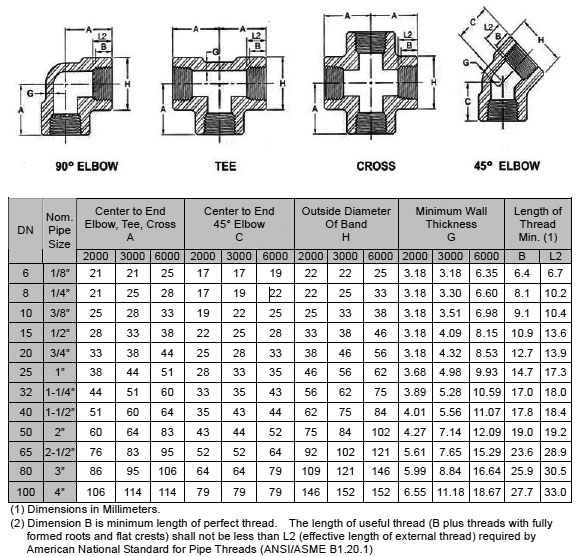

Dimensions
ASME B16.11-2009 (Revision of ASME B16.11-2005)
Threaded Cross
Class 2000 |
Nominal Pipe Size |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
A | - | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
B | - | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
Wt | - | 0.500 | 0.460 | 0.777 | 1.125 | 1.688 | 2.450 | 3.188 | 5.560 | 16.438 | 19.500 | 32.688 | |
Class 3000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
Wt | 0.438 | 0.567 | 0.970 | 1.500 | 2.500 | 3.620 | 4.125 | 6.500 | 8.125 | 16.750 | 25.675 | 32.000 | |
Class 6000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
Wt | 0.563 | 1.188 | 1.500 | 2.750 | 4.313 | 6.625 | 10.750 | 11.500 | 22.188 | 27.500 | 54.000 | 43.500 |
