Flanges

THREADED FITTINGS

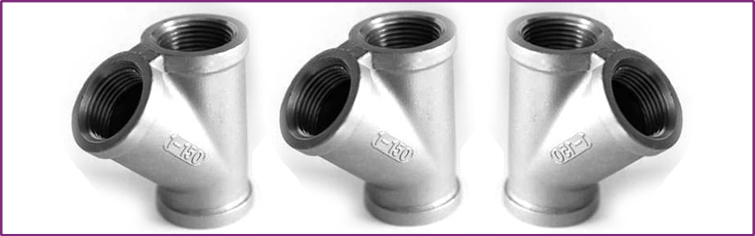

45° LATERAL TEE

Fabricated using stainless steel, our range of threaded fittings is one of the most demanded items of our entire range. Suitable for different industrial projects, these adroitly developed threaded pipe fittings are stringently checked for their durability and strength. These are also offered in accordance with the national and international standard & specifications.

Size Class Range Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union ANSI B 16.11 ASTM A 182



Size Class Range Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union ANSI B 16.11 ASTM A 182



Nickel Alloy 45° Lateral Tee

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel 45° Lateral Tee

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Stainless Steel 45° Lateral Tee

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel 45° Lateral Tee

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel 45° Lateral Tee

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel 45° Lateral Tee

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
45° Lateral Tee Size : 1/2” NB TO 24” NB.

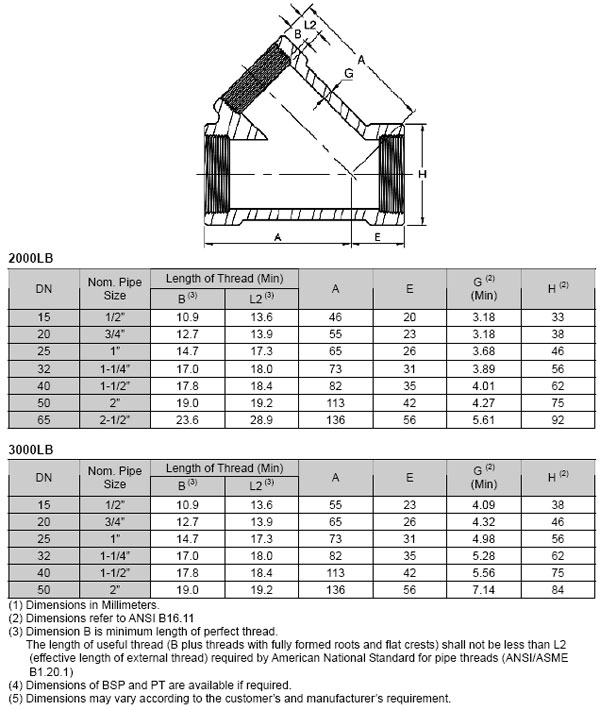

Dimensions
